So I started the tailgate and getting less done each dark cold night. I have had a few things around here to take care of the past few weeks and I might have less going into this build daily. I wanted more to get done but have no time. Unlike the beginning of this build. Sorry to let you guys down but it's tough in this cold weather.

Posted ImagePosted Image


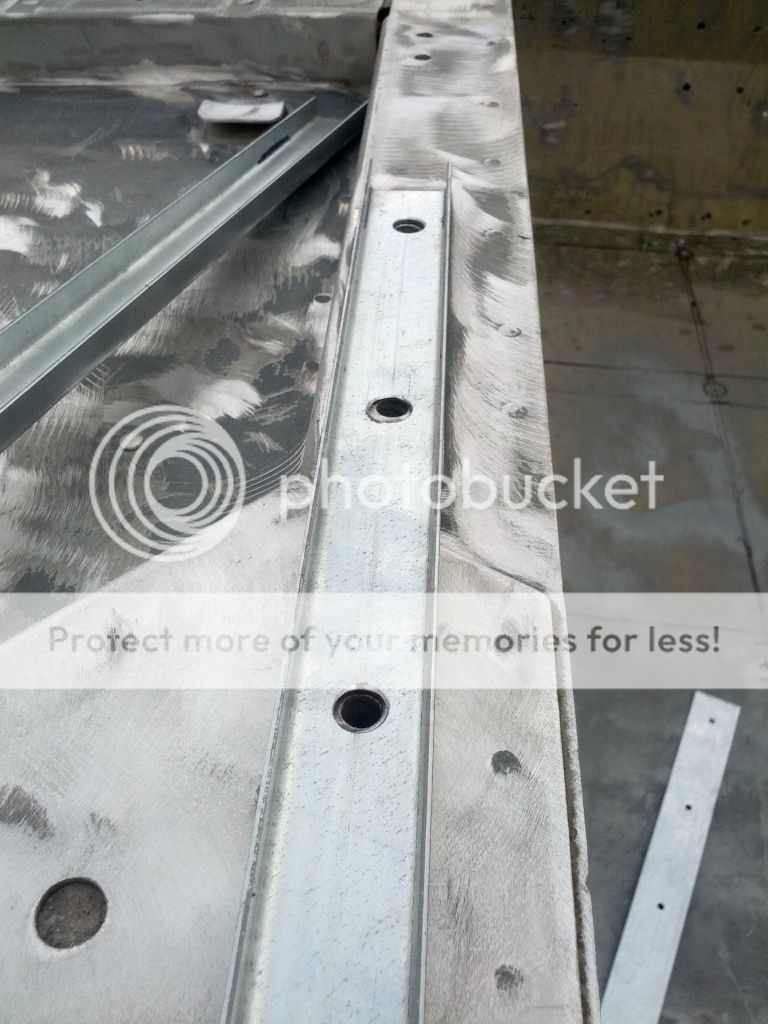

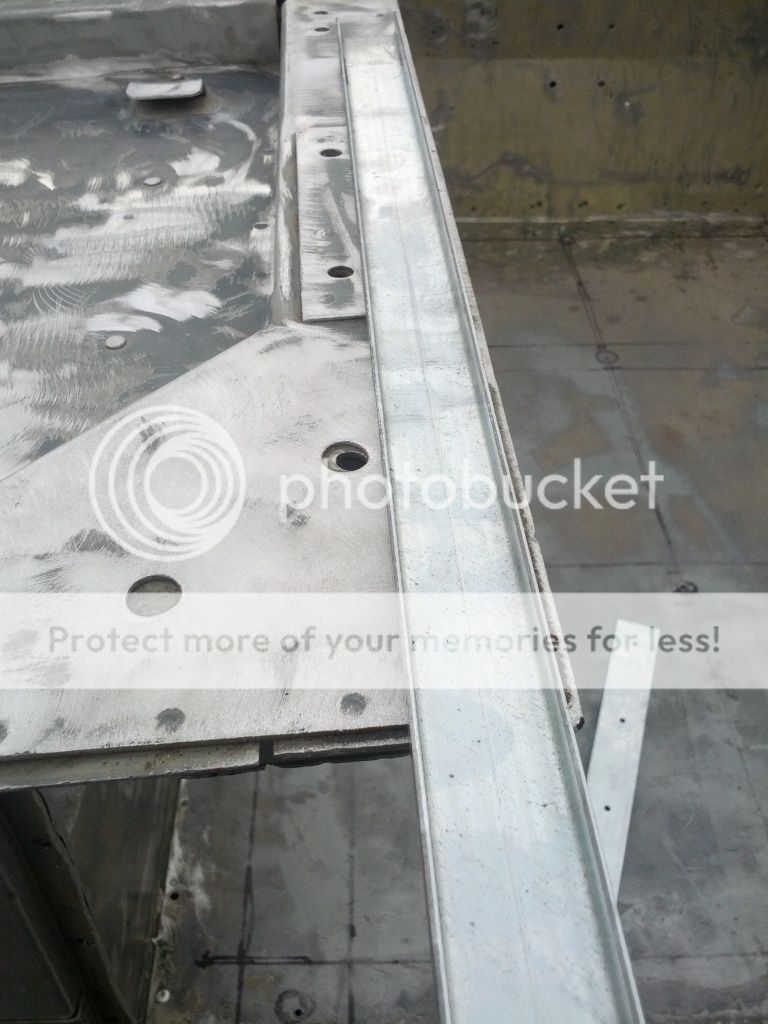

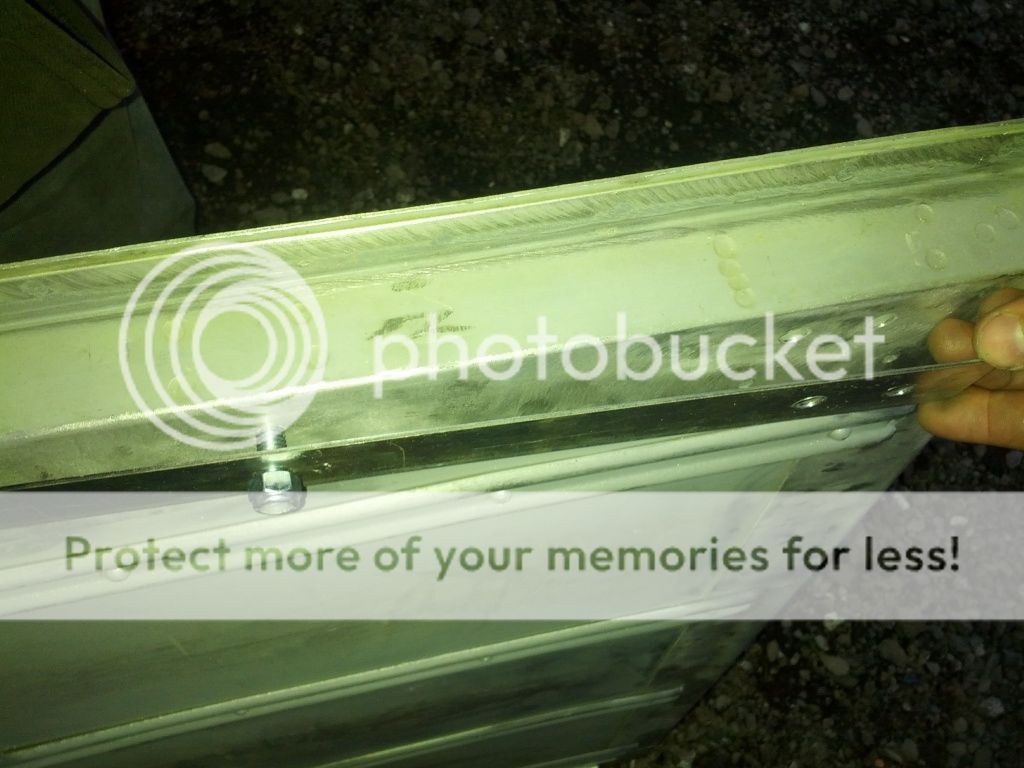

I drilled holes and made up my own frame. Similar to stock.

Posted Image
Posted Image
Posted Image
Posted Image
Posted Image
Posted Image
Posted Image
Posted Image

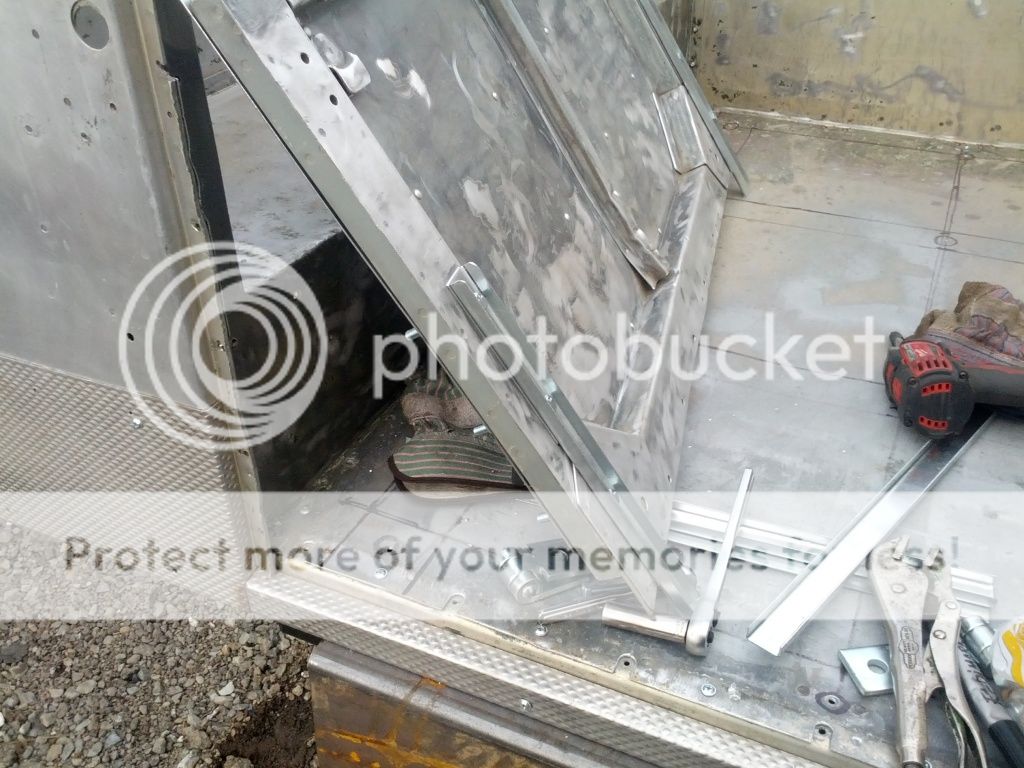

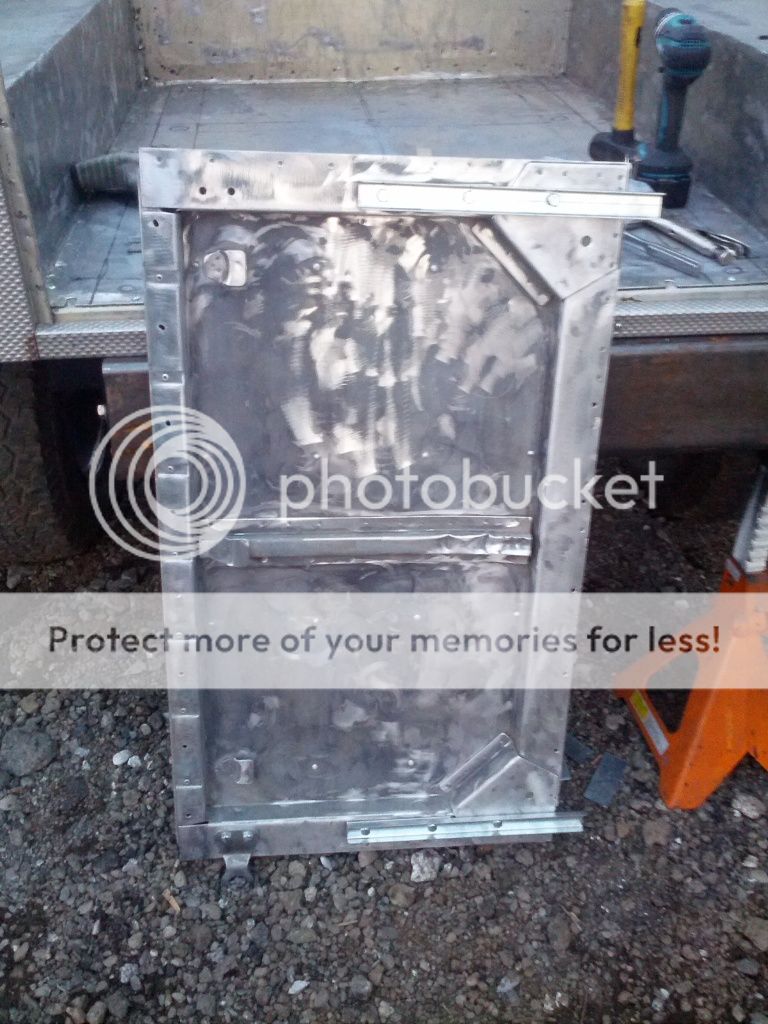

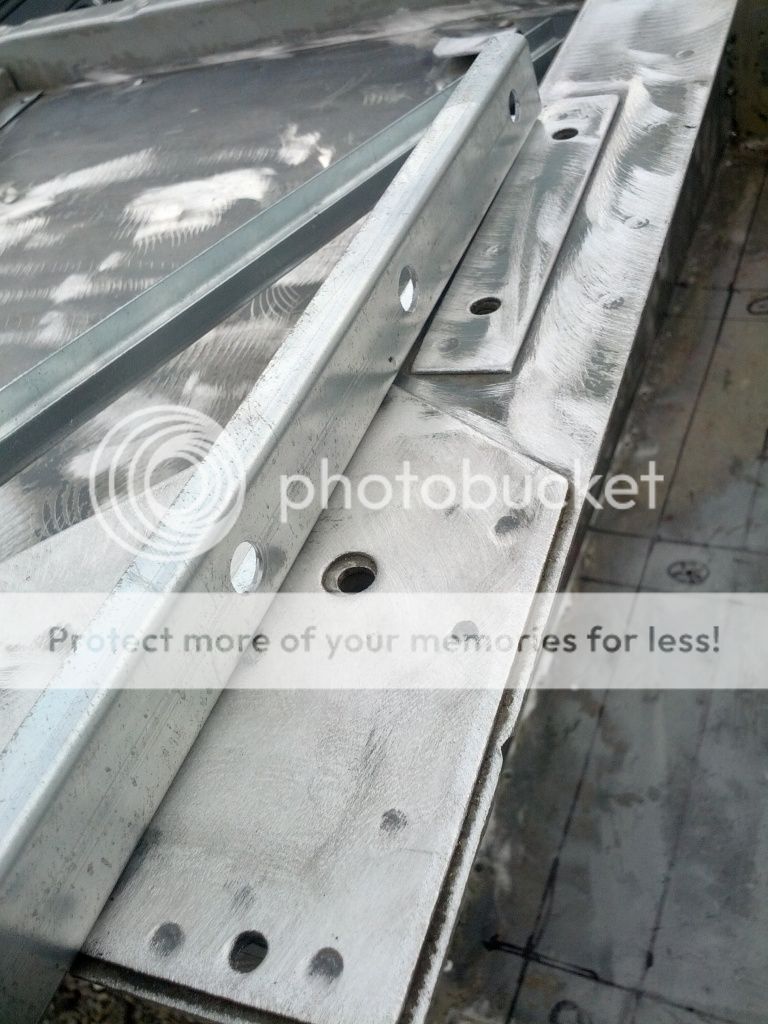

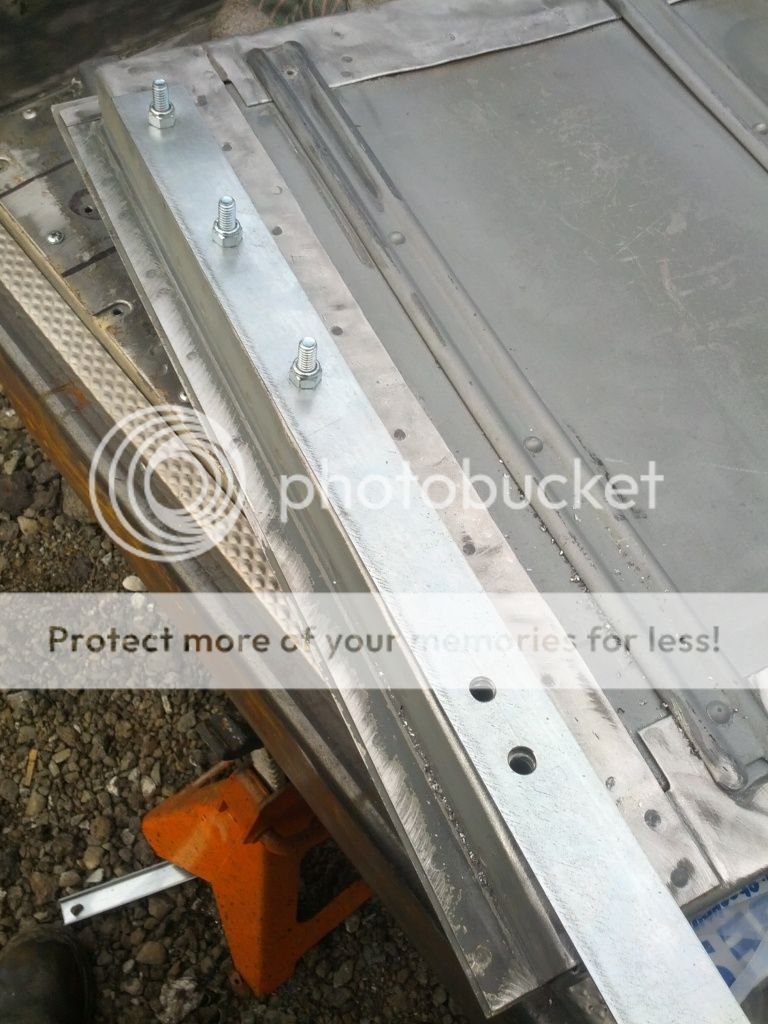

Using the hardware from the OEM parts I could find and use I have added them with heavier bolts and nuts which required a few tiny bit bigger holes.

http://i591.photobuc...zps507c2114.jpg
http://i591.photobuc...zpsd91f03d3.jpg
http://i591.photobuc...zpsb15661c9.jpg
http://i591.photobuc...zps297406a7.jpg
http://i591.photobuc...zps5fdc7b3c.jpg
http://i591.photobuc...zpsa430e9c2.jpg
http://i591.photobuc...zpscb6cc24d.jpg
http://i591.photobuc...zps1317fa1e.jpg
http://i591.photobuc...zps22504a45.jpg
http://i591.photobuc...zps43d63690.jpg
http://i591.photobuc...zpsb7e31139.jpg
http://i591.photobuc...zps4de2ab3e.jpg
http://i591.photobuc...zpsff7bbbb8.jpg

I'm going to slightly change the gate design since I have none of that here and I'm on a budget. This will work just fine for now.

http://i591.photobuc...zpsff36c65d.jpg
http://i591.photobuc...zpsdfa39e63.jpg
http://i591.photobuc...zps5a67ba08.jpg
http://i591.photobuc...zps050a1d6c.jpg
http://i591.photobuc...zpsae57a7f9.jpg
http://i591.photobuc...zps63ae81dc.jpg

Edited by Pedram, 06 December 2013 - 10:28 PM.


#103
Guest_Pedram_*

Guest_Pedram_*
  • Old/deleted account
I found this if anyone is really looking to buy a ready to go tent trailer... great find in my opinion.

http://sacramento.cr...4232388290.html

Also found this looking around at pictures for ideas.... Nothing crazy... just ideas.
http://www.pinterest...60428151823547/

Edited by Pedram, 11 December 2013 - 12:09 AM.


#104
ROVRMAN2

ROVRMAN2

    NCLR011- Rupert

  • NCLR Club Member
  • PipPipPipPip
  • 1,438 posts
  • KJ6IOF
  • 2005 LR3 HSE
  • 2004 DII HSE (deceased)
  • 2003 DII HSE (deceased)
That Tentrax is a REALLY good buy. Never been used too! I know a person that has one but not as elaborate.
2005 LR3, sliders, ARB bumper,Superwinch X9,Front Runner roof rack,OME ladder,
100w PV,aux battery,M416 camper trailer, RTT, LED lightbar, Green Oval lift rods.
AlCan,Dalton,Edgerton,Top of the World,Cassiar,Baja Sur Highways approved.

#105
ROVRMAN2

ROVRMAN2

    NCLR011- Rupert

  • NCLR Club Member
  • PipPipPipPip
  • 1,438 posts
  • KJ6IOF
  • 2005 LR3 HSE
  • 2004 DII HSE (deceased)
  • 2003 DII HSE (deceased)
Antonio,
Are you selling your 101 trailer?
Found this on craigslist and it sure looks like yours.
At that price its a fantastic buy!

http://sfbay.craigsl...4230956397.html

Edited by ROVRMAN2, 11 December 2013 - 08:16 PM.
addendum

2005 LR3, sliders, ARB bumper,Superwinch X9,Front Runner roof rack,OME ladder,
100w PV,aux battery,M416 camper trailer, RTT, LED lightbar, Green Oval lift rods.
AlCan,Dalton,Edgerton,Top of the World,Cassiar,Baja Sur Highways approved.

#106
SLOHybrid

SLOHybrid

    Driver

  • NCLR Club Member
  • PipPipPip
  • 939 posts
  • SLO
  • 95 RRC 25th 4.6
  • 04 L322
  • 87 RRC
  • 94 4.6 RRC LWB CRAWLER
Pedram I found the 2 red taillight assemblies! still want them????

NCLR 093

Traversing Defense Mine Waterfall
http://www.youtube.c...h?v=JqczzhsWOh8


#107
Guest_Pedram_*

Guest_Pedram_*
  • Old/deleted account
Yes I do. I could use them. Are you able to ship it to my house? I'll pay your shipping. And if you have PayPal I can send it that way.

#108
SLOHybrid

SLOHybrid

    Driver

  • NCLR Club Member
  • PipPipPip
  • 939 posts
  • SLO
  • 95 RRC 25th 4.6
  • 04 L322
  • 87 RRC
  • 94 4.6 RRC LWB CRAWLER
Ok! I wil ship them out tomorrow... send a few bucks to rovage1@sbcglobal.net

Text me your address:)

NCLR 093

Traversing Defense Mine Waterfall
http://www.youtube.c...h?v=JqczzhsWOh8


#109
Guest_Pedram_*

Guest_Pedram_*
  • Old/deleted account
Got your lights Nathan. Thanks for the fast service.

#110
Guest_Pedram_*

Guest_Pedram_*
  • Old/deleted account

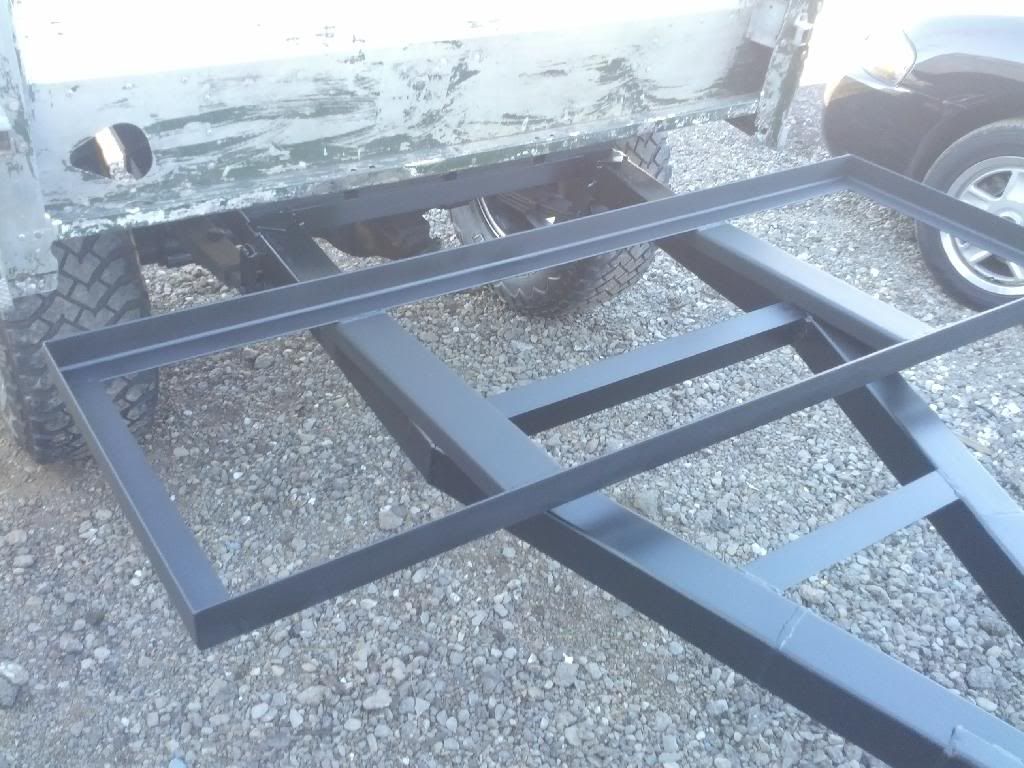

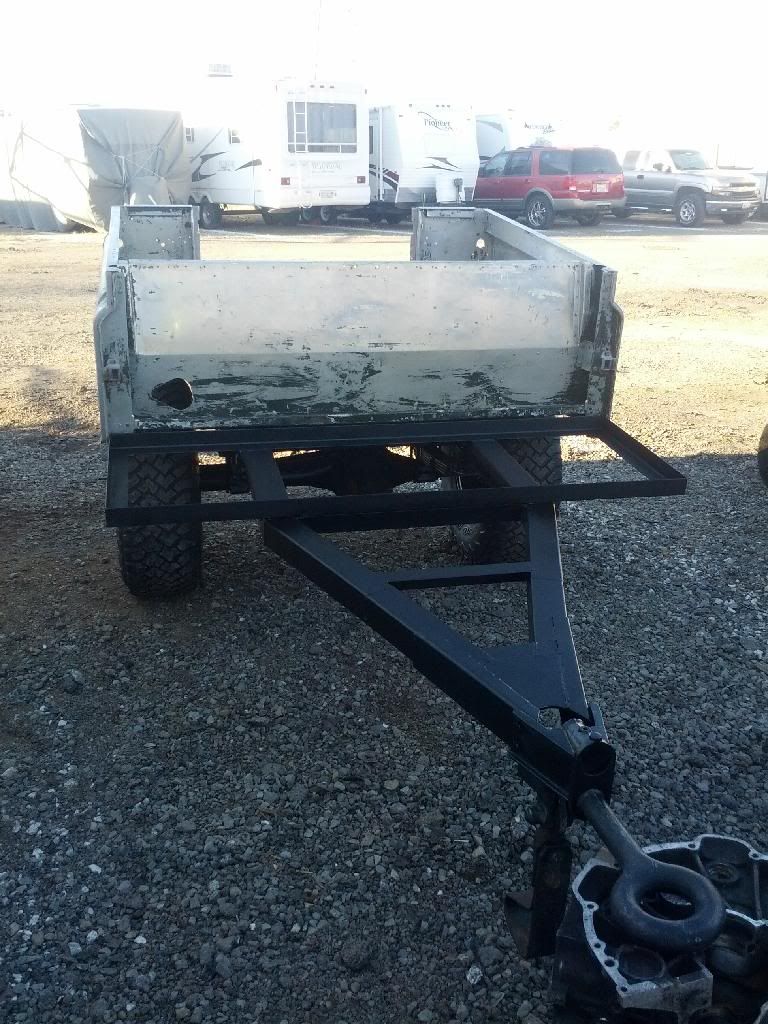

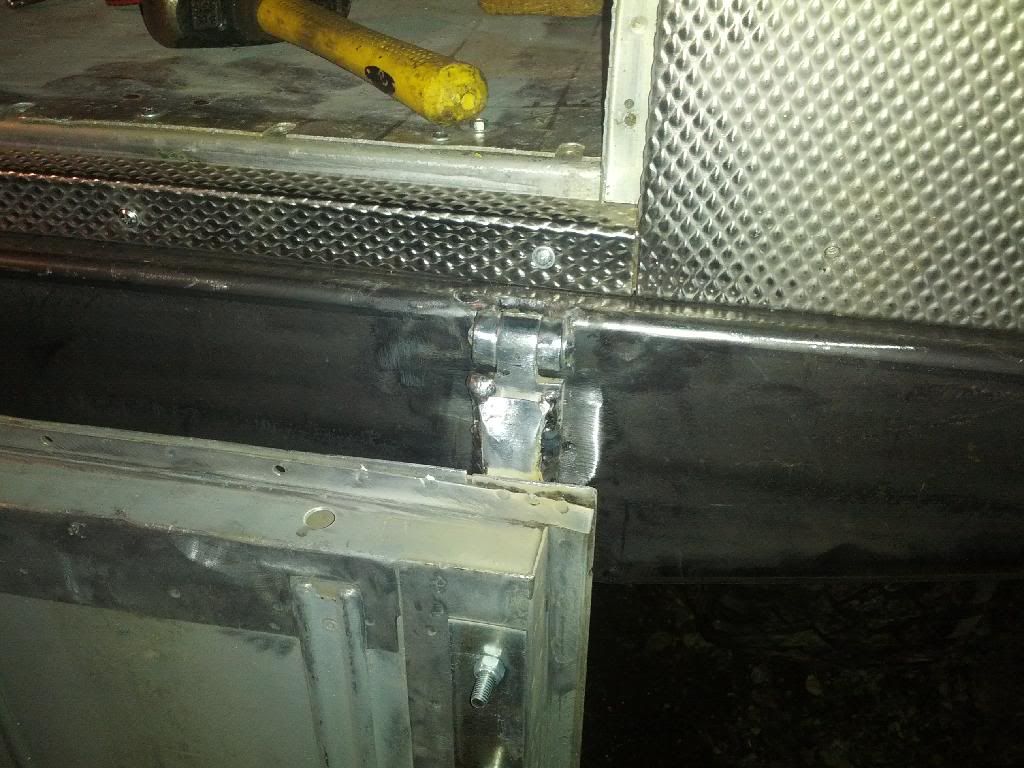

I started the rear bumper and front basket this week. Got bigger tires mounted and have a nice rolling trailer at the moment.

Here are a quick few pictures for my fans.

Posted Image
Posted Image
Posted Image
Posted Image
Posted Image
Posted Image

#111
Guest_Pedram_*

Guest_Pedram_*
  • Old/deleted account

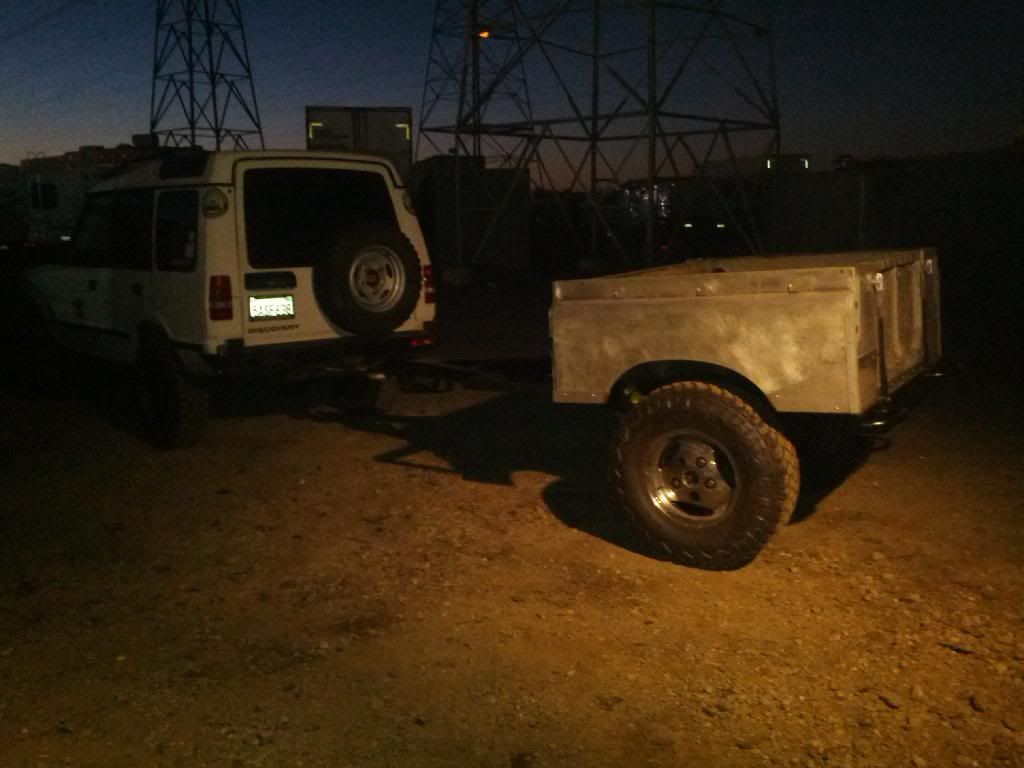

And that's not ALL I did .....

More eye candy. I have some photos issues since I have over loaded my first Photobucket account up and having to switch over to another and loading pictures is a little more fun right now but getting the hang of it.

Posted Image
Posted Image

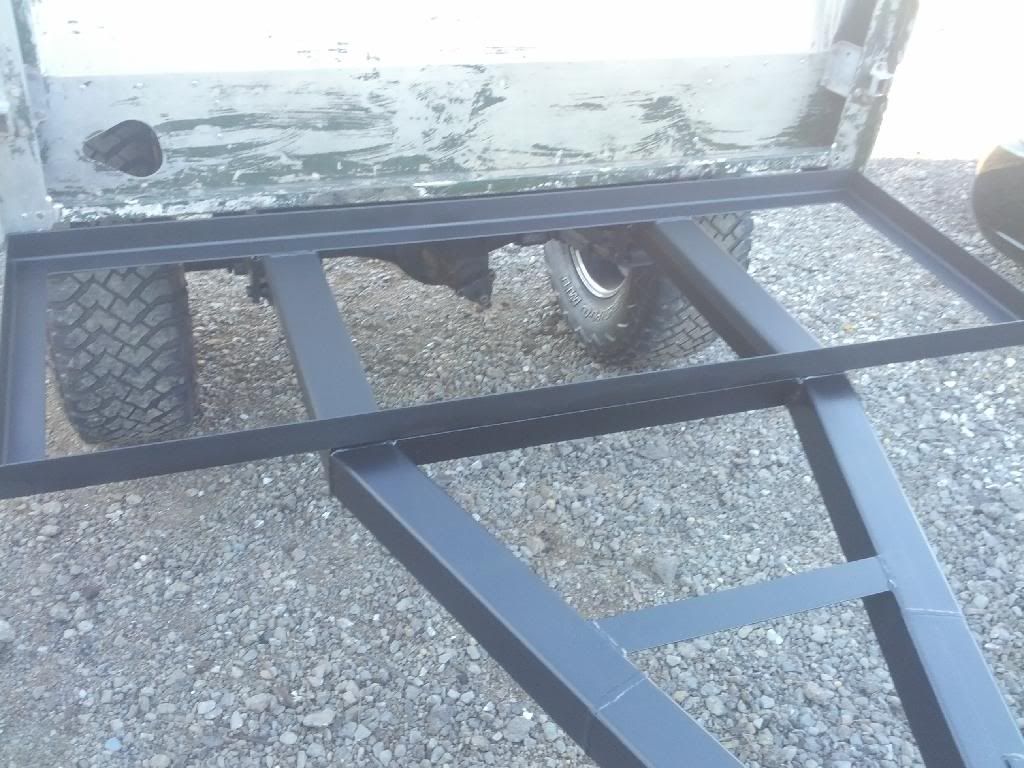

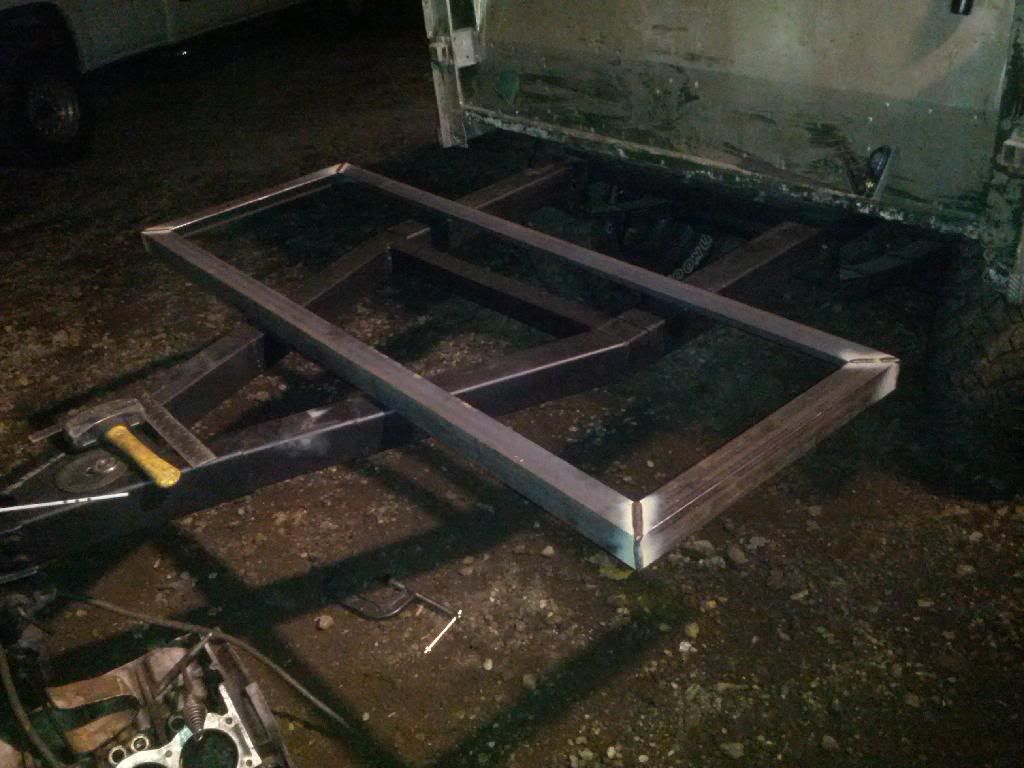

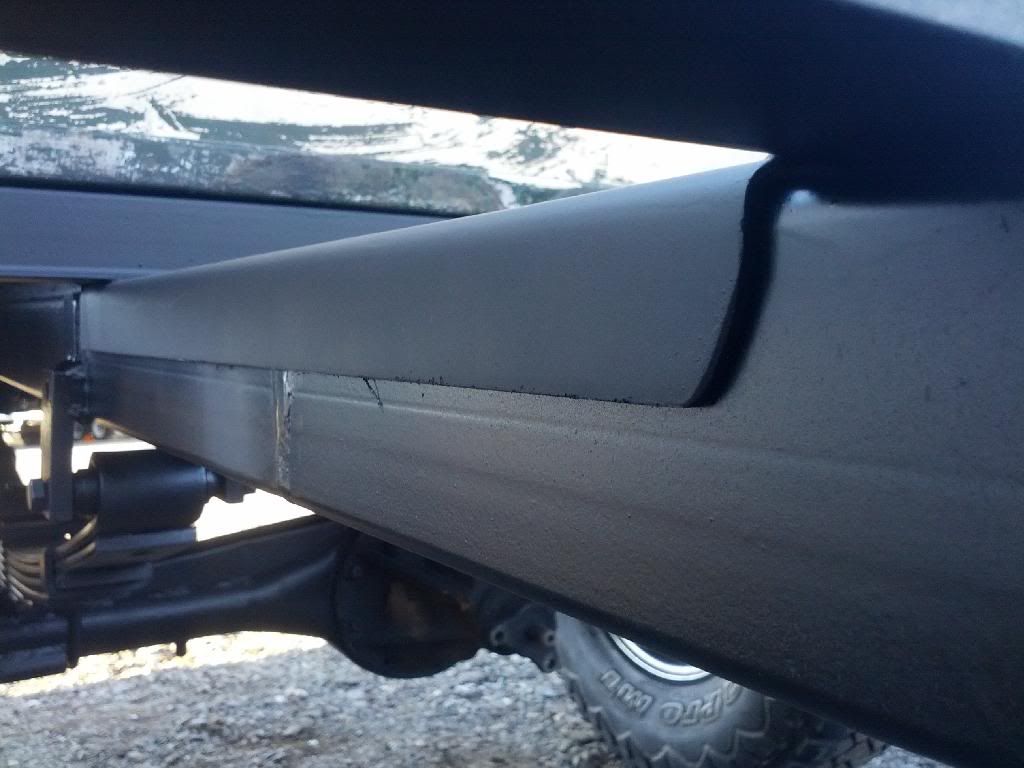

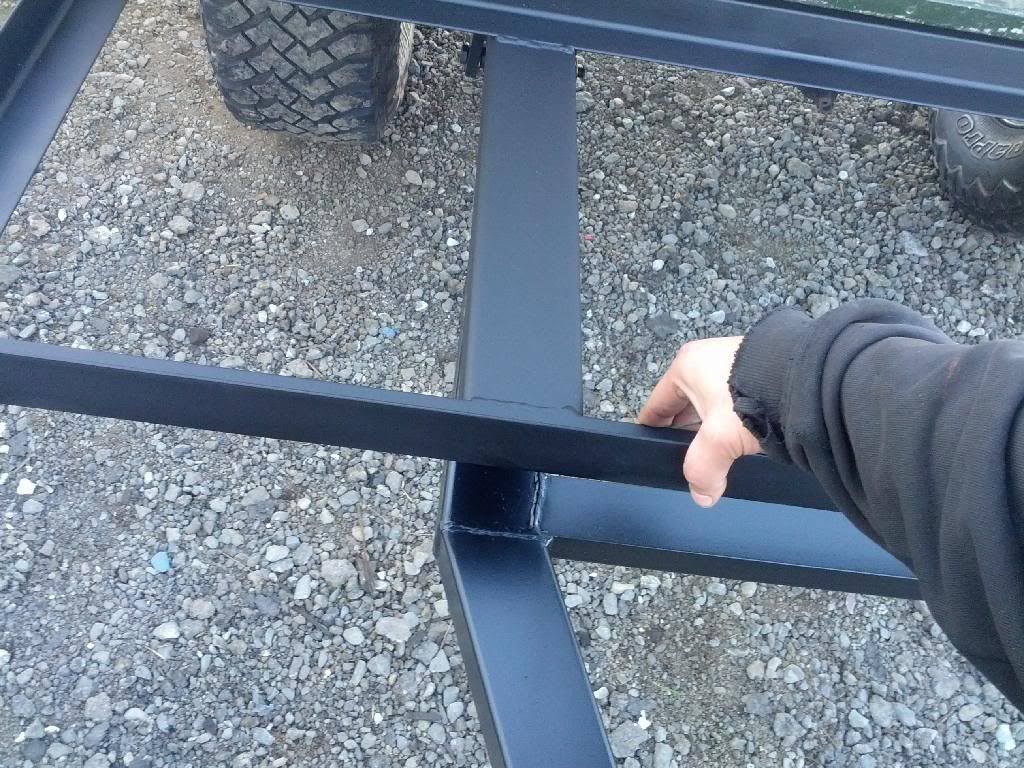

I built an "A" frame up front but had to adjust it a few times so there are a few extra welds and cuts more than planned.
Nothing a welder and cut-off wheel can't fix.

Posted Image
Posted Image

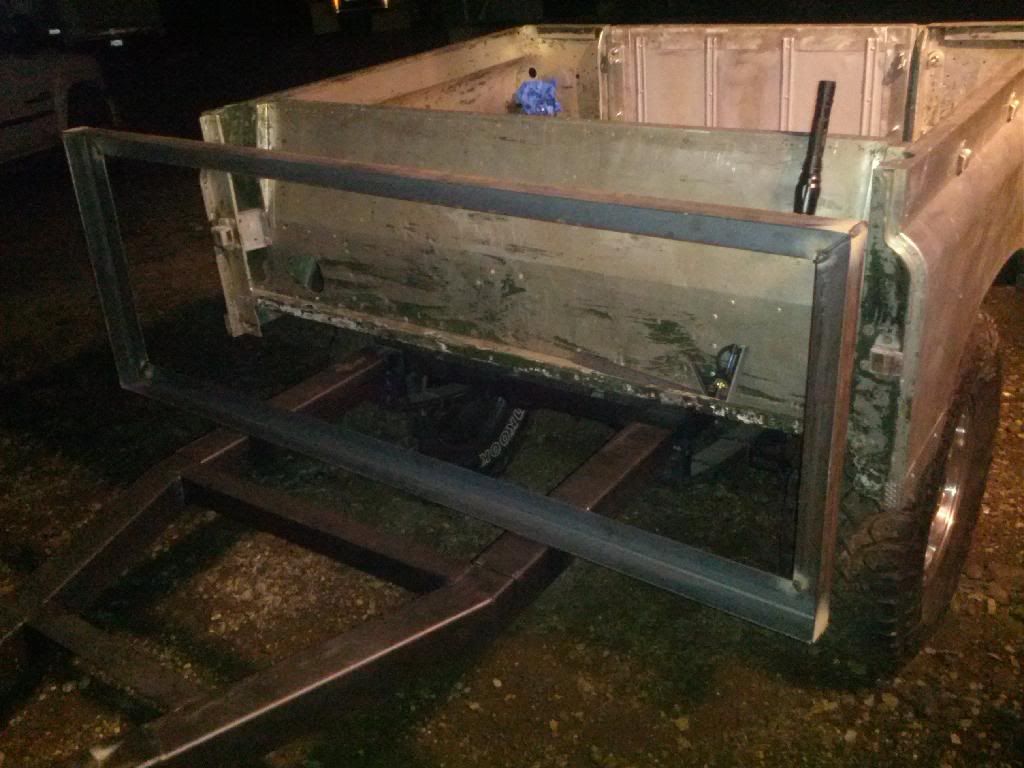

Next day I went to a local fabricator and asked him to make me some bent tubes for steps.

Posted Image
Posted Image
Posted Image
Posted Image
Posted Image
Posted Image
http://i1286.photobu...zps9ixofr9a.jpg

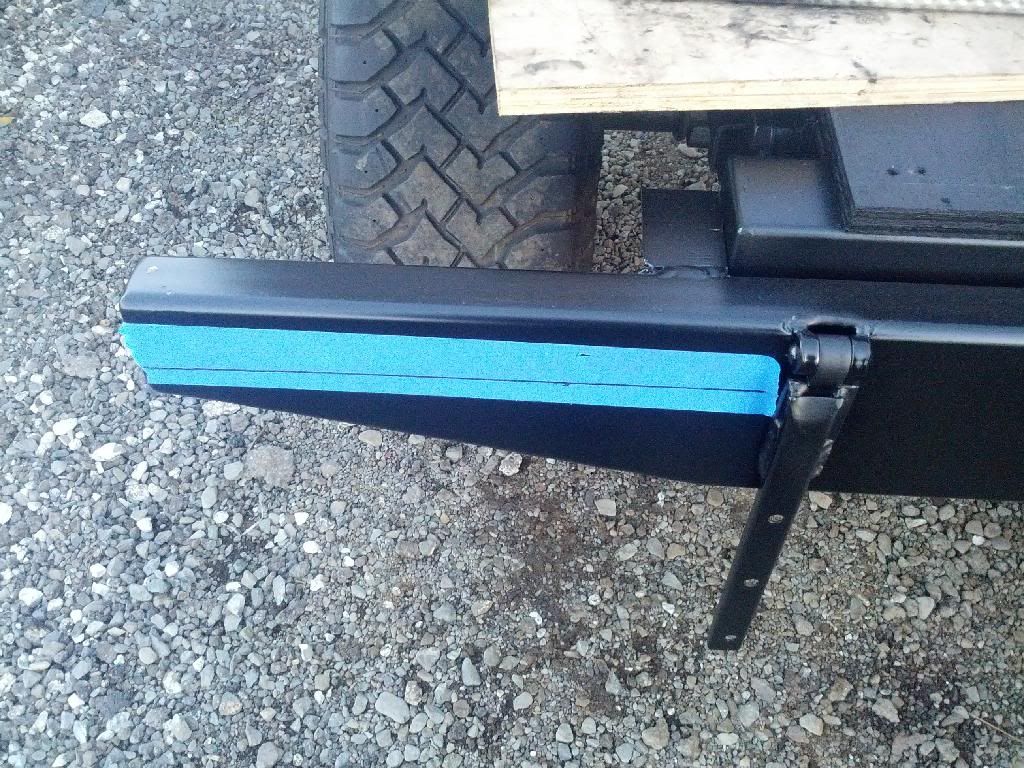

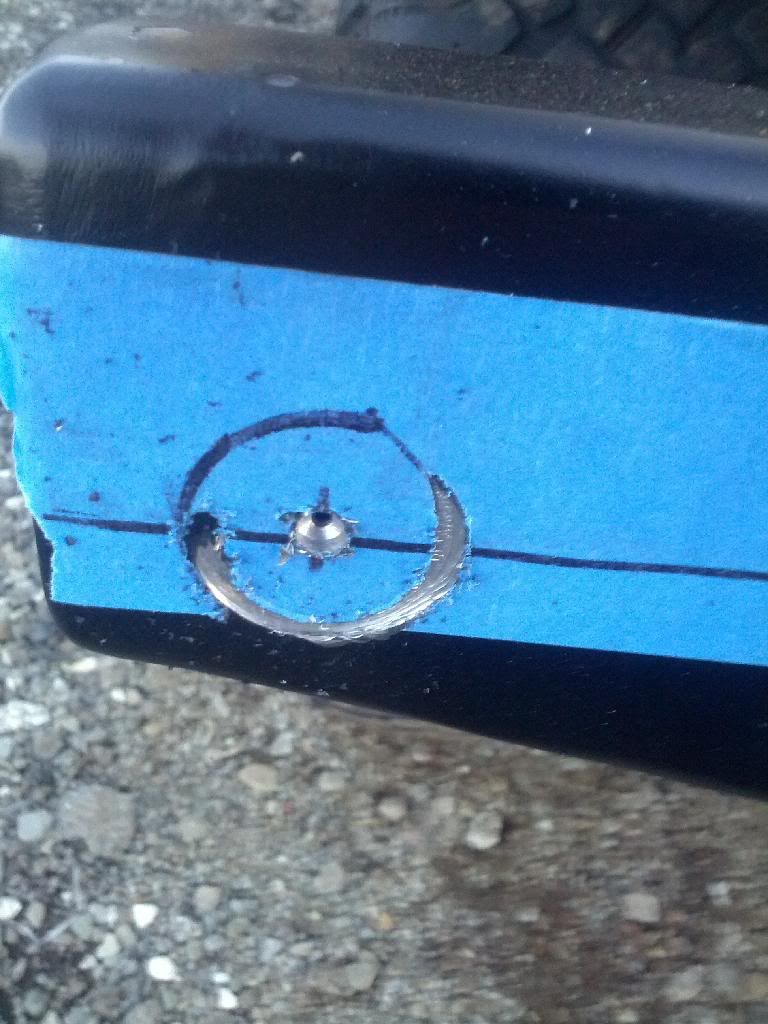

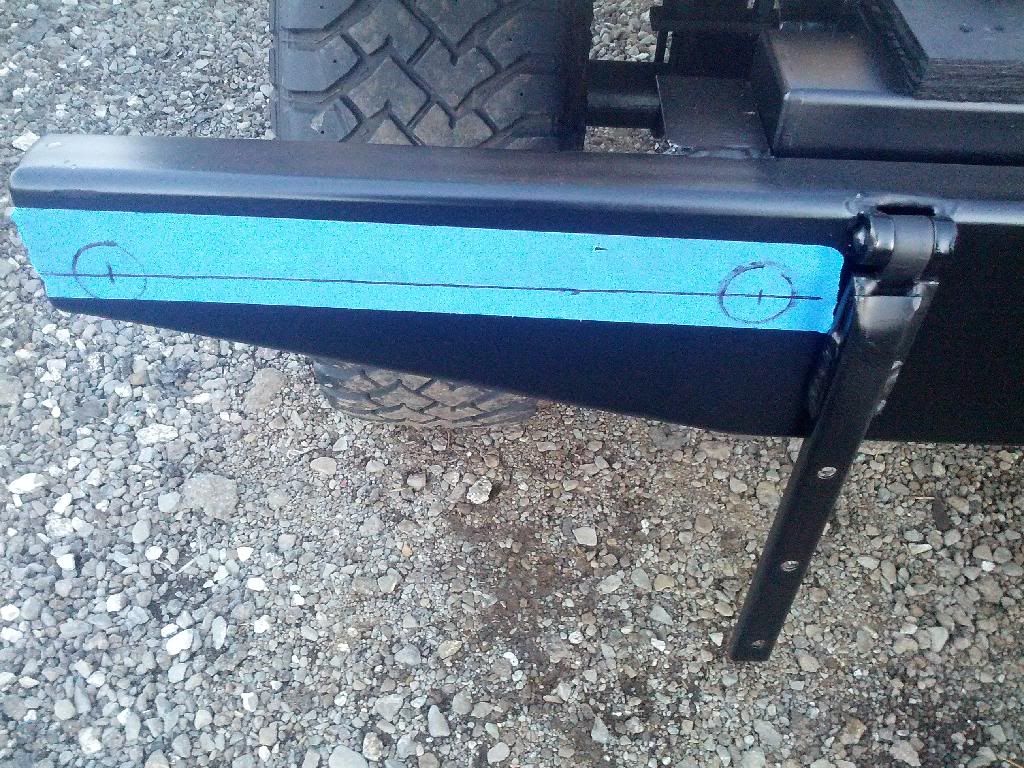

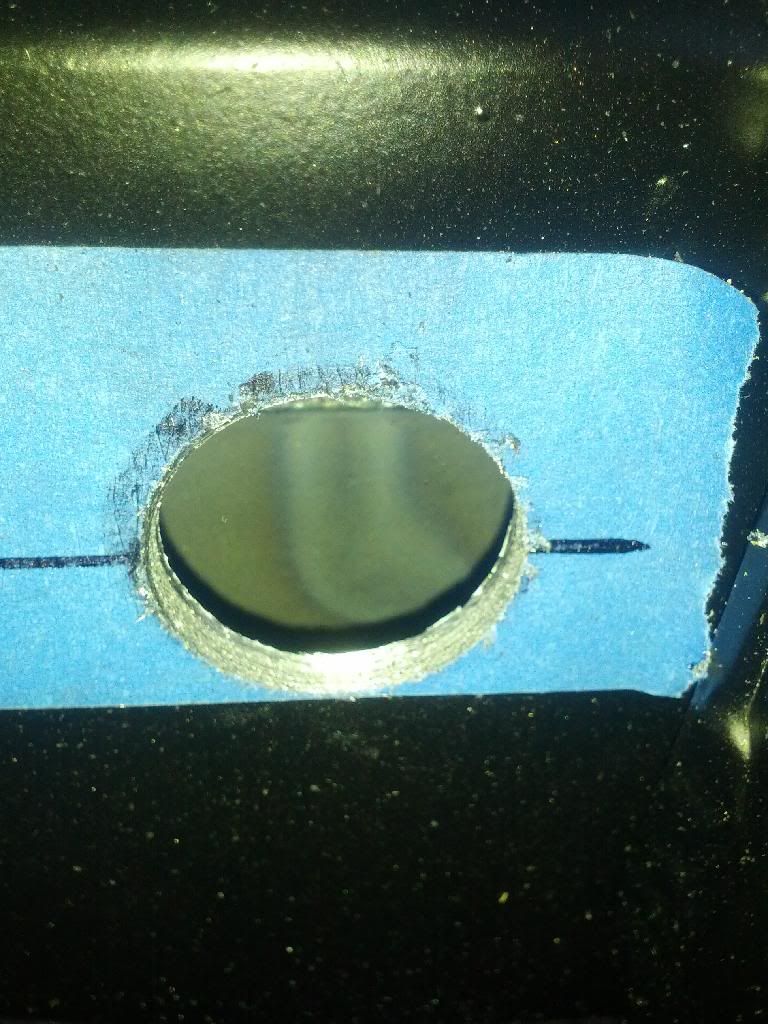

I predrilled holes in the rear bumper for these tubes to drop in and welded them up. Way easier this way for me.

http://i1286.photobu...zps8qbliwvt.jpg
http://i1286.photobu...zpstbzis7oj.jpg
http://i1286.photobu...zpsz7zftpfa.jpg
http://i1286.photobu...zpsdhee5g9y.jpg
http://i1286.photobu...zpskptjbf4y.jpg
http://i1286.photobu...zpslu9gey61.jpg
http://i1286.photobu...zpspyr5hsdo.jpg

#112
Guest_Pedram_*

Guest_Pedram_*
  • Old/deleted account

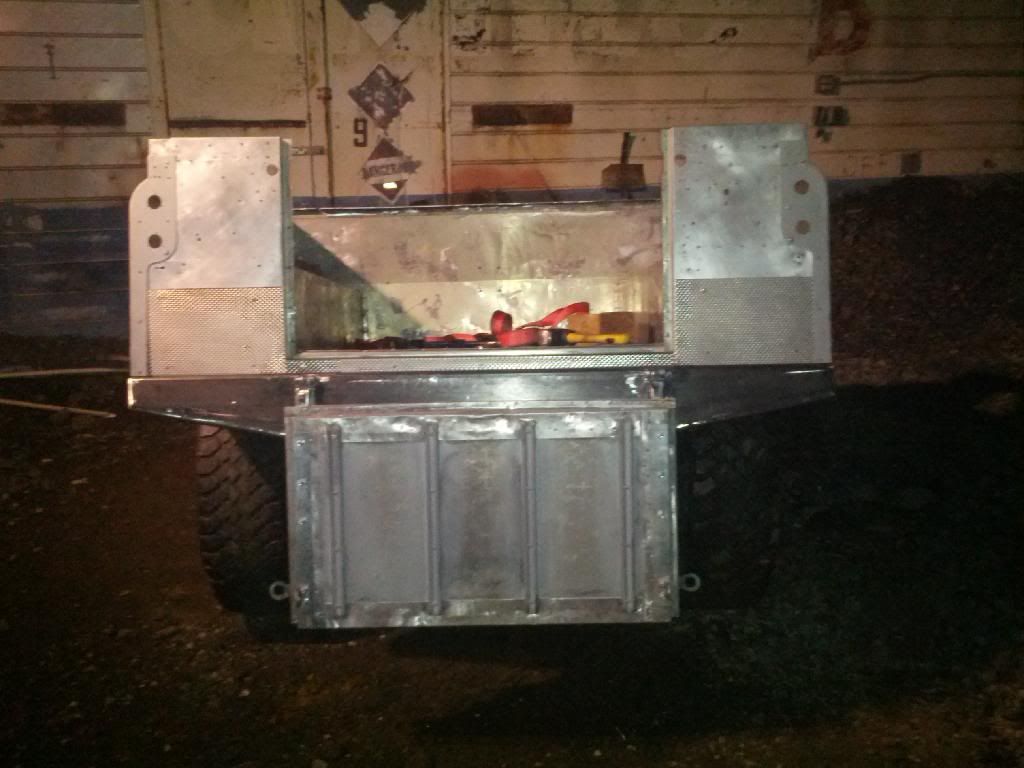

Now this bumper is placed back on the bed and I can start something else.

Posted Image
Posted Image

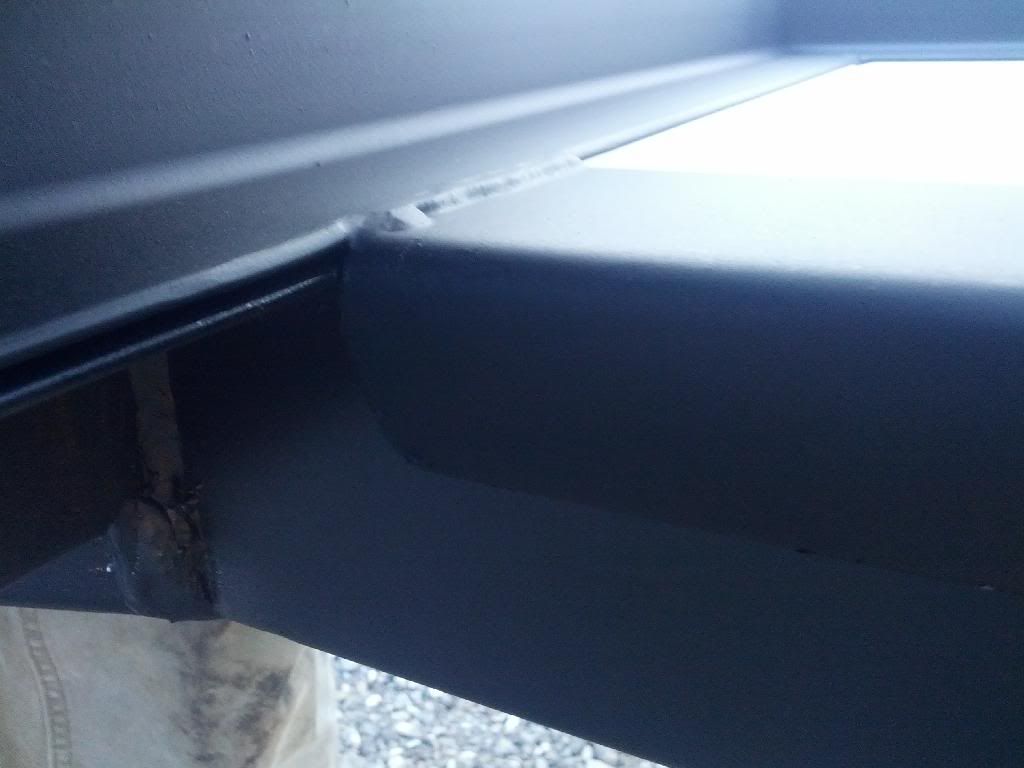

I made this basket removable for future add-ons. So a few things need to be done to keep it working properly.

Posted Image
Posted Image
Posted Image

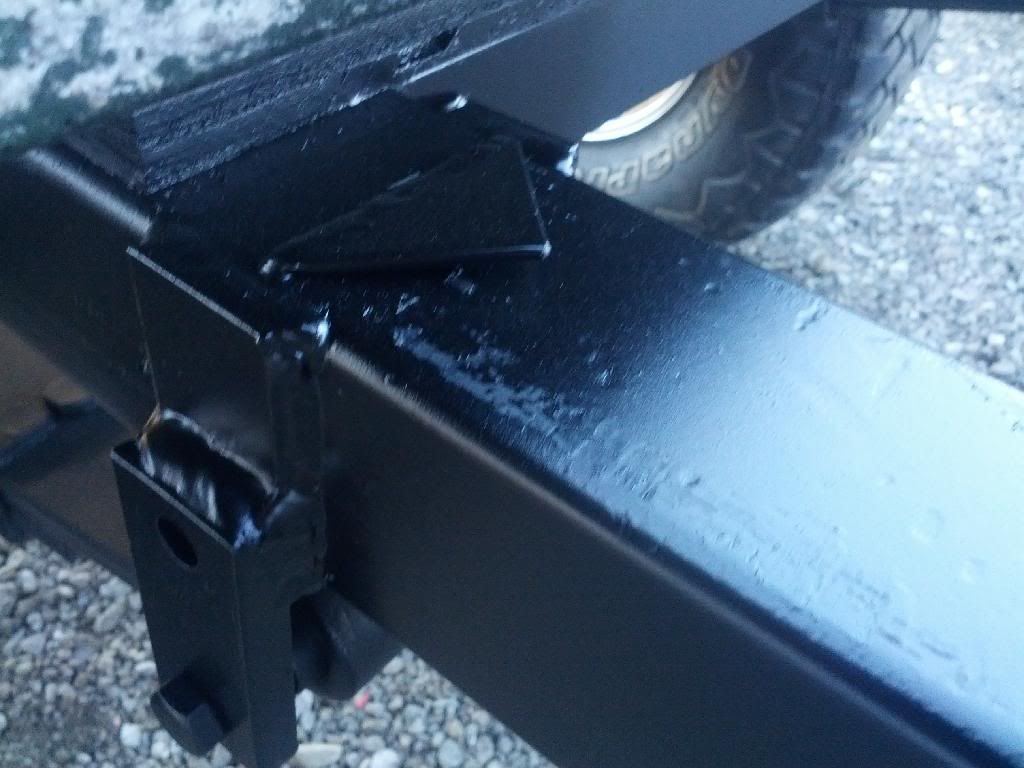

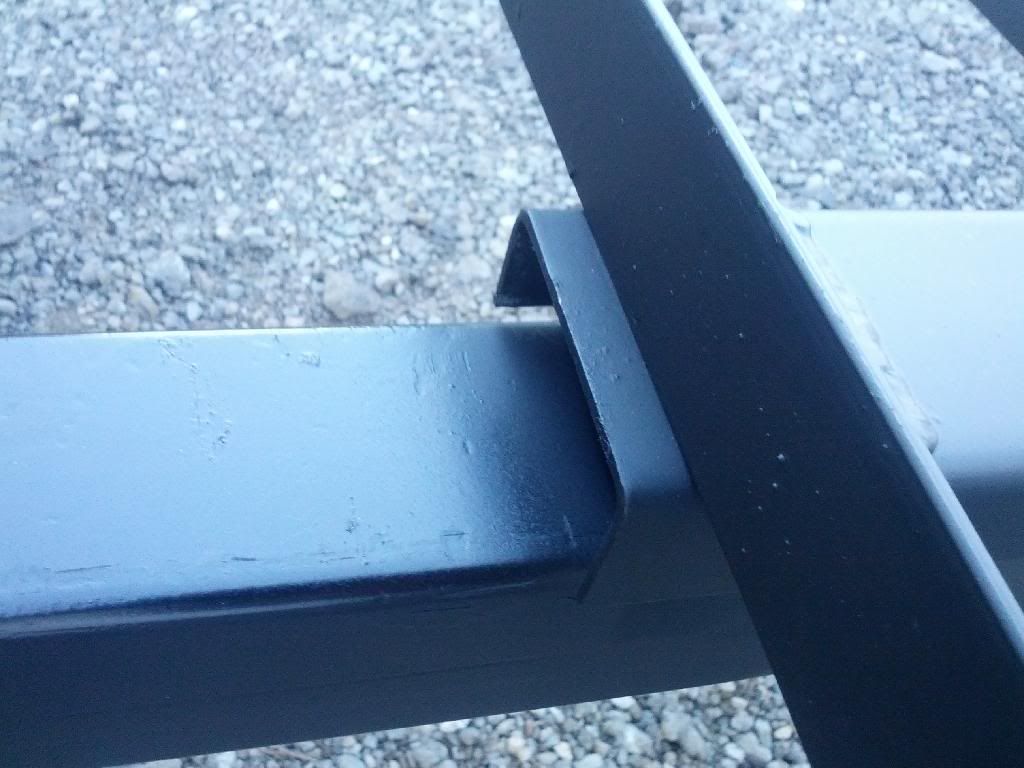

In the rear end of this basket frame is a "V" shaped steel plate that holds the frame down.

Posted Image
Posted Image
Posted Image
Posted Image
Posted Image
http://i1286.photobu...zpsic2cqijc.jpg

Here is the rear in the day time.

http://i1286.photobu...zpstqsv5bey.jpg
http://i1286.photobu...zpsoqqln3o6.jpg
http://i1286.photobu...zpsdwrbzdaq.jpg
http://i1286.photobu...zpszzvrfqwo.jpg
http://i1286.photobu...zpsqjx4cs7q.jpg

#113
Guest_Pedram_*

Guest_Pedram_*
  • Old/deleted account
Here is a video of what I did so far. Click on the picture here. I had to hold my camera sideways to get a good underside picture so it's kinda a narrow quality which I didn't expect, sorry. And I also noticed all the noises my phone made in the first few seconds of shooting it. But its better you get a video explaining what I'm going for.

Posted Image

#114
Disco2Guy

Disco2Guy

    NCLR President 2013-2016

  • NCLR Club Member
  • PipPipPipPipPip
  • 3,859 posts
  • KD2RVR
  • 2001 D2, heavily modified
Looking good Pedram;) On top of the fender flares, I also have some shocks you can use if you want. I have a front and rear set of OME's (for D2 obviously). The rears only have 1000 or so miles. I used bought them new, and only used them to get to and from work while the 7100's were being rebuilt. The rears are eye to eye and would be easier to mount (I assume) than the fronts which have an inverted "T" and use 2 bolts, with an eye on top.

Brenton Corns
TREAD Lightly! Tread Trainer


4xFarAdventures.com


2001 D2

205,000 miles





#115
Guest_Pedram_*

Guest_Pedram_*
  • Old/deleted account
How long are they? I could use something there with eye to eye. How much you want for them?

#116
Disco2Guy

Disco2Guy

    NCLR President 2013-2016

  • NCLR Club Member
  • PipPipPipPipPip
  • 3,859 posts
  • KD2RVR
  • 2001 D2, heavily modified
N108/N108C

Rear Heavy Load (220 lbs. to 440 lbs.)

363 Compressed (mm)

593 Extended (mm)

Brenton Corns
TREAD Lightly! Tread Trainer


4xFarAdventures.com


2001 D2

205,000 miles





#117
Guest_Pedram_*

Guest_Pedram_*
  • Old/deleted account

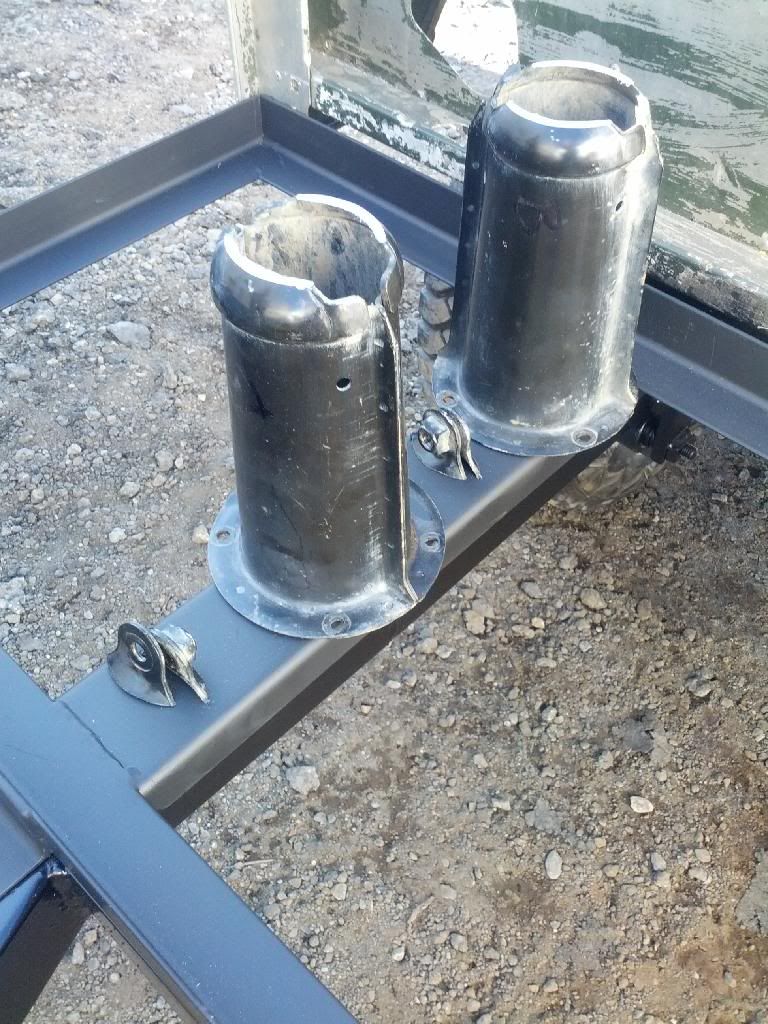

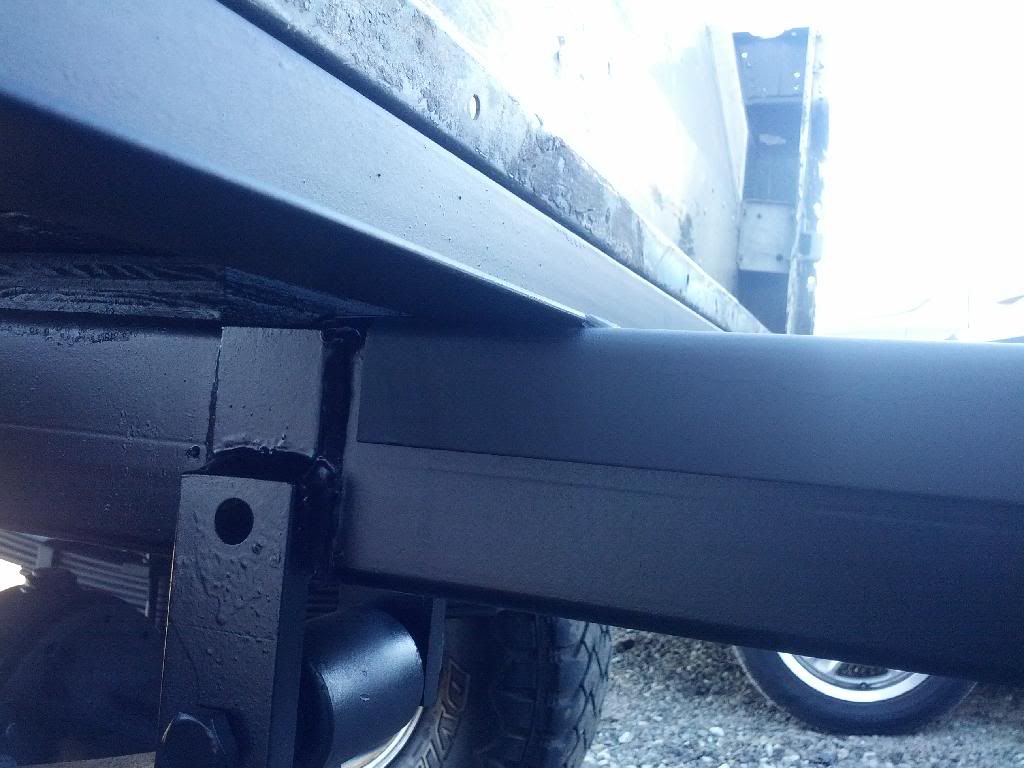

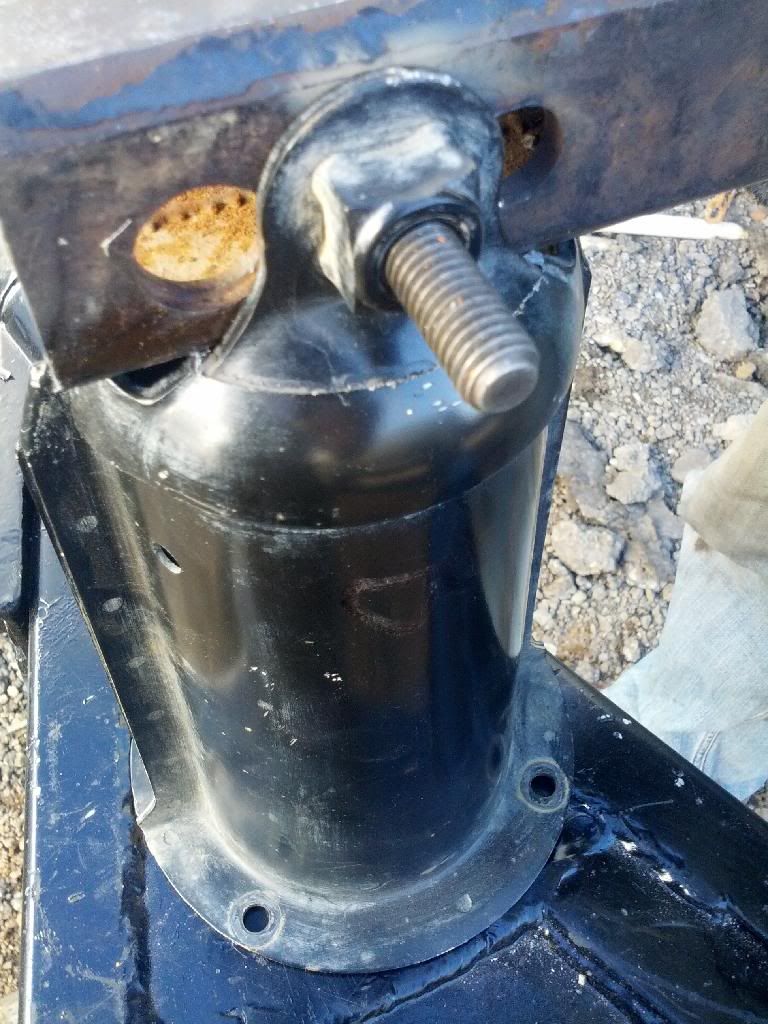

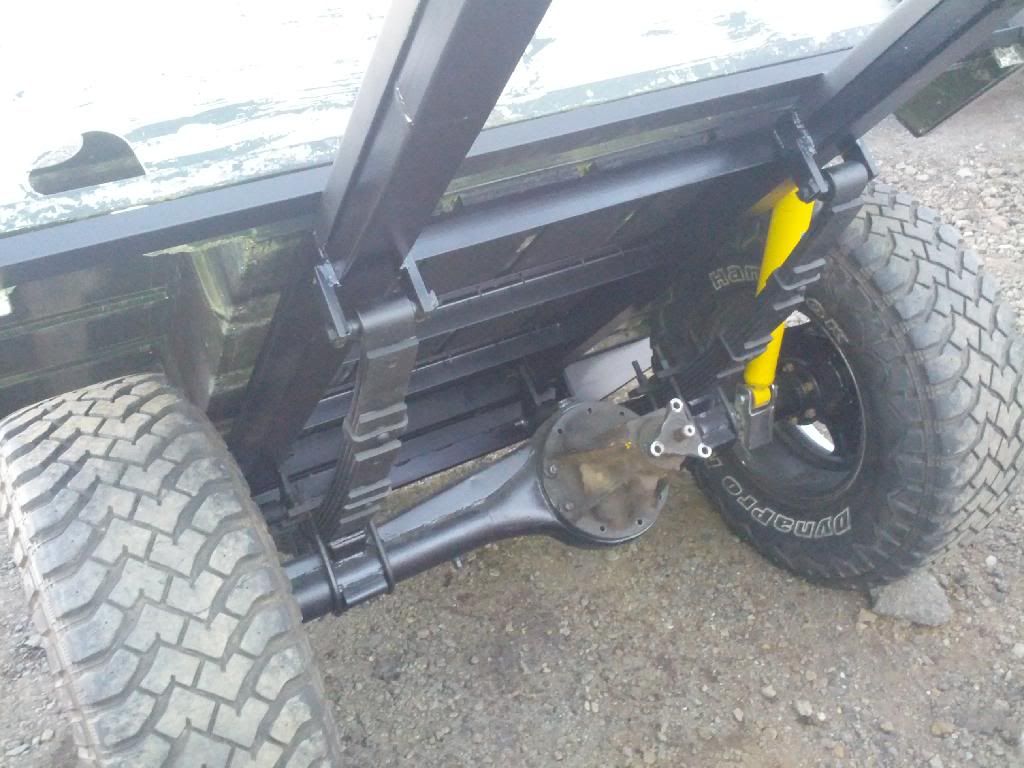

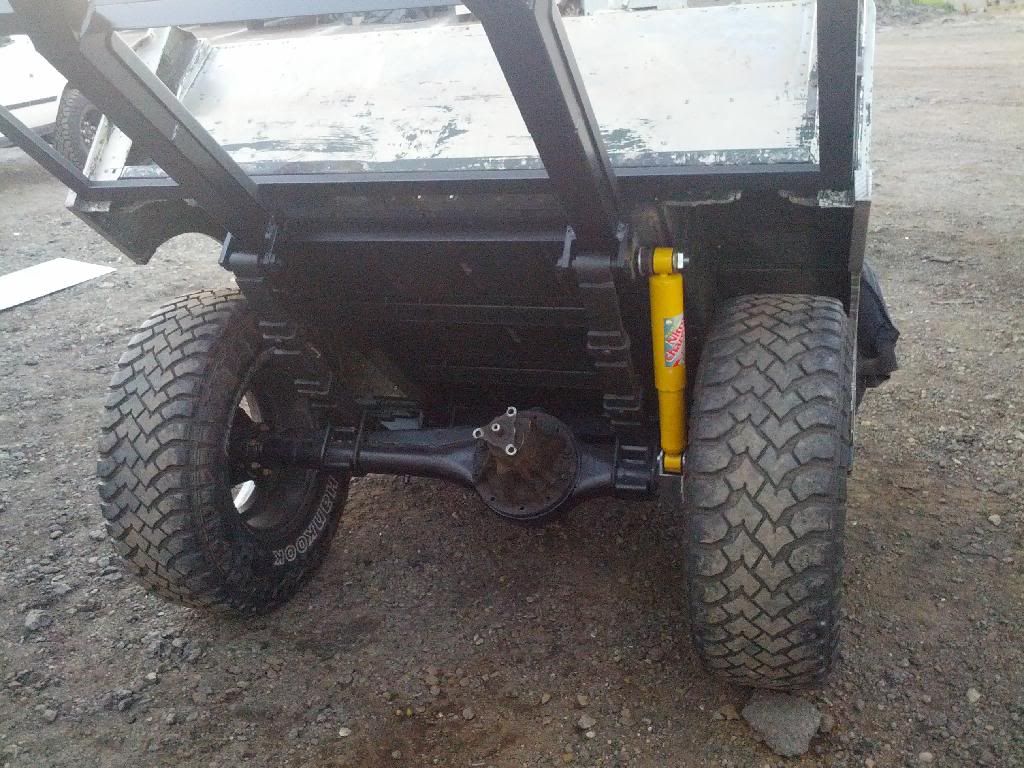

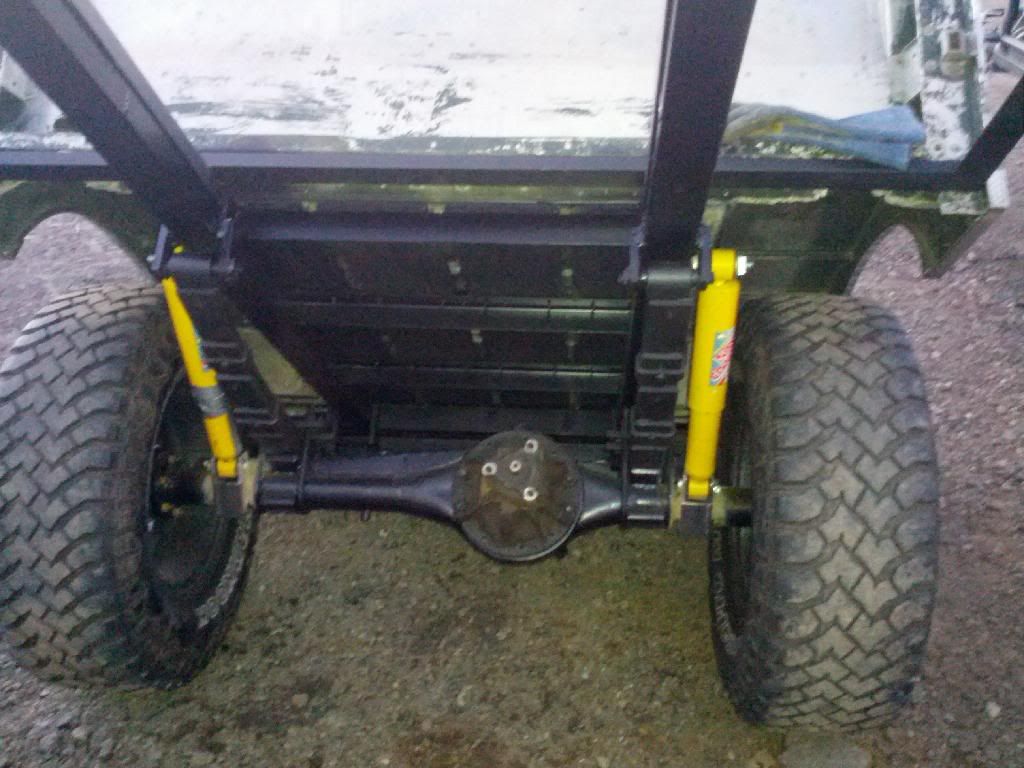

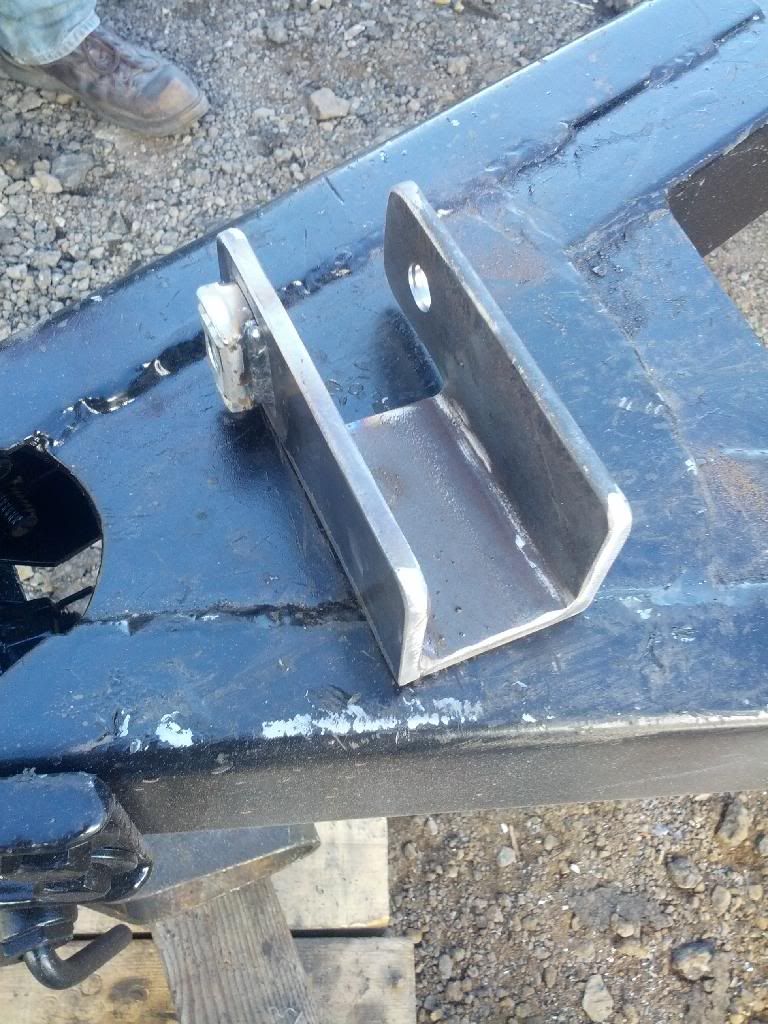

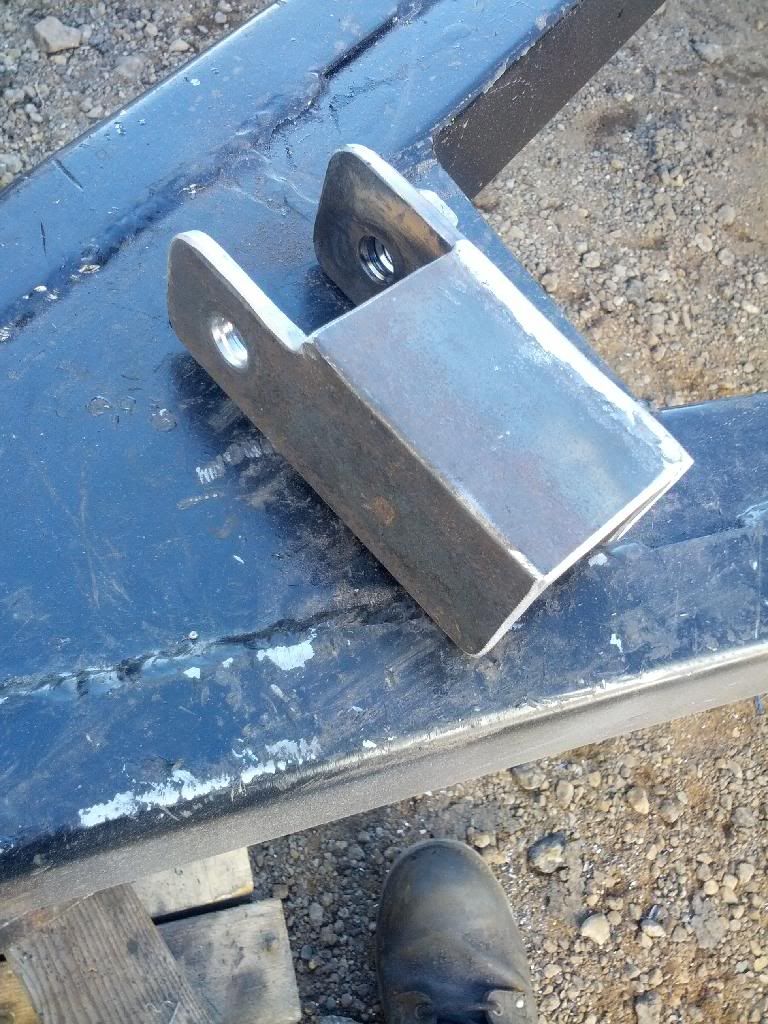

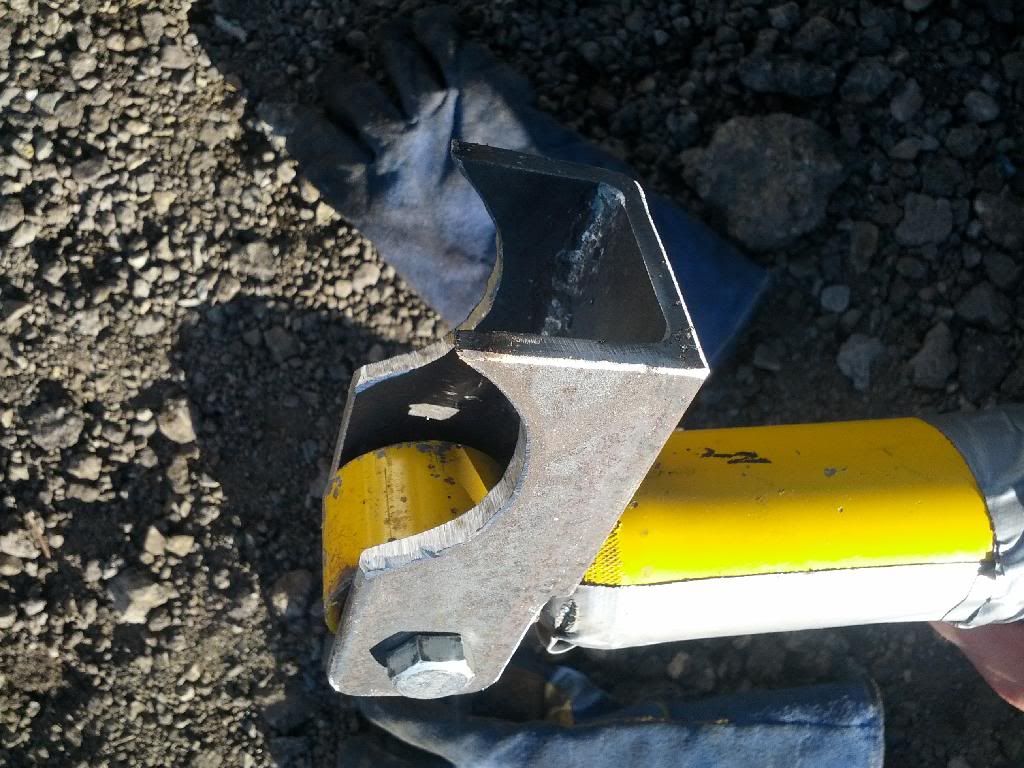

So with the help of Brenton and his OME shocks I started to figure out a way to give this thing some legs.

Posted Image
Posted Image
Posted Image
Posted Image
Posted Image

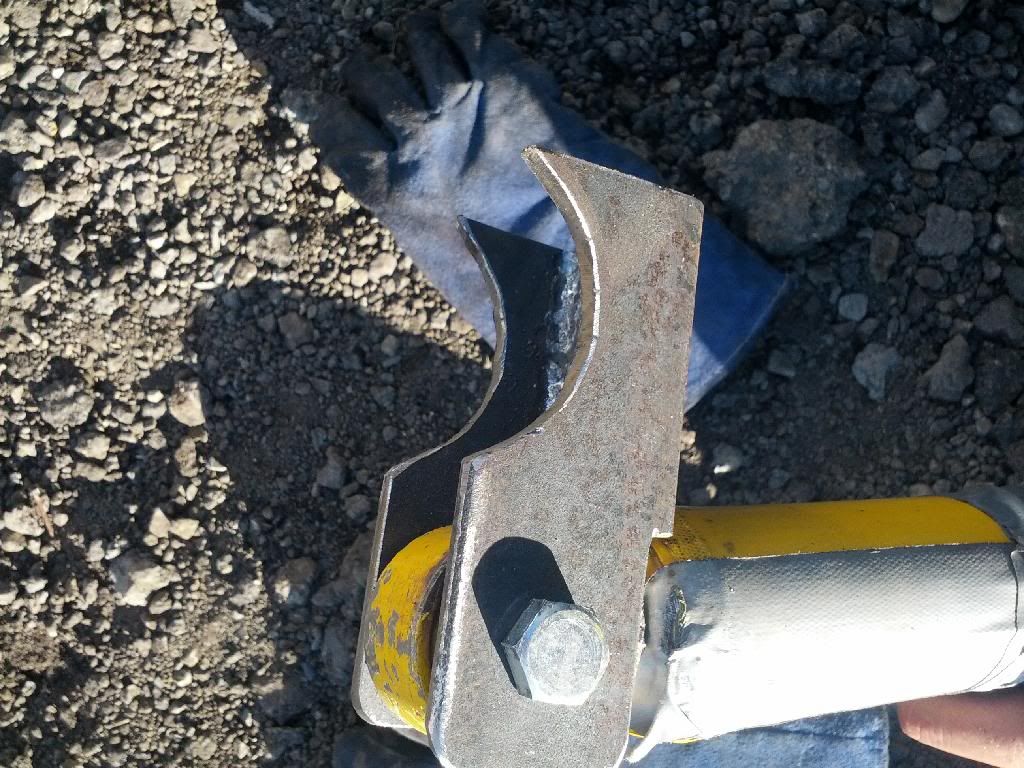

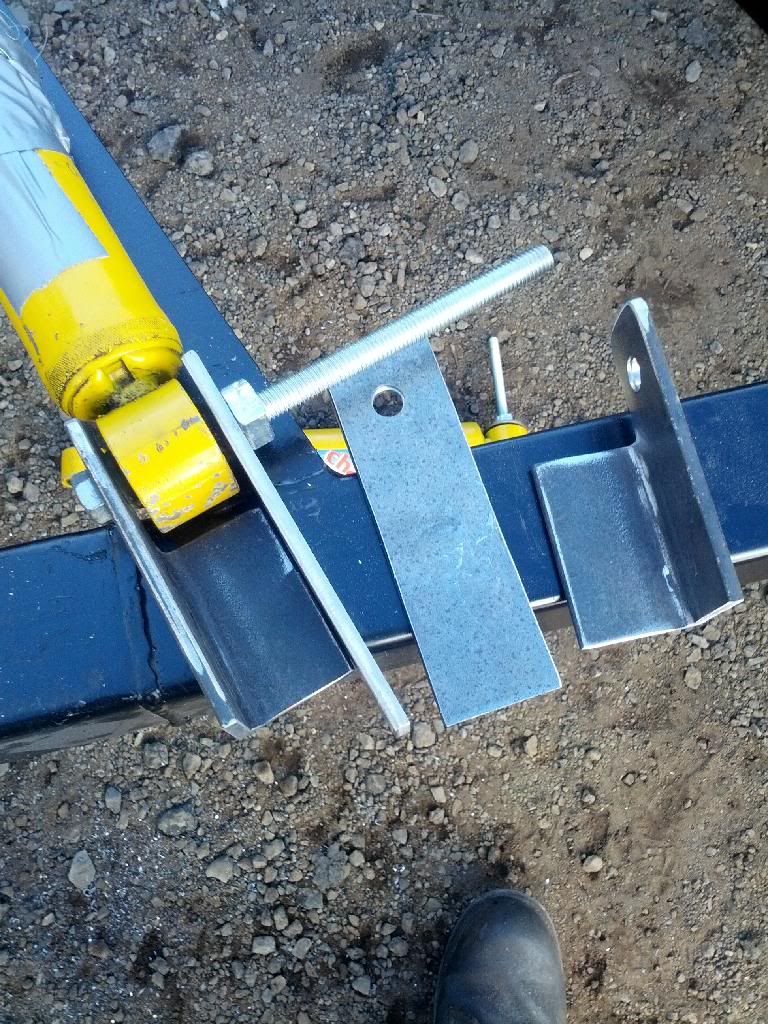

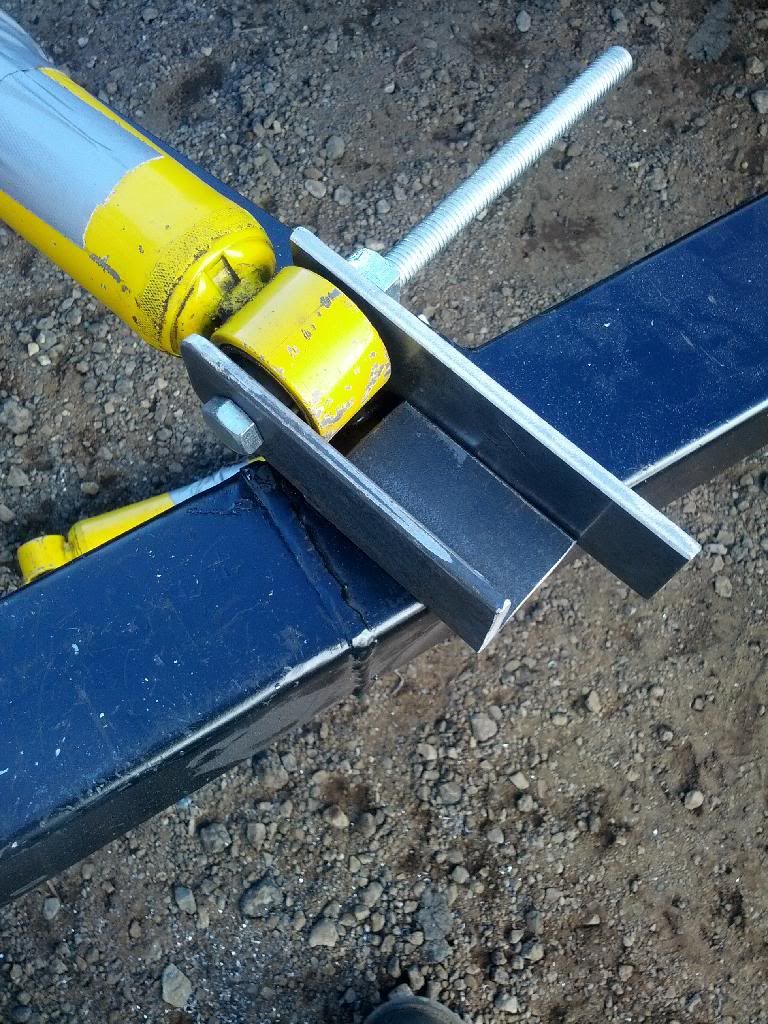

After marking out some lines for the mounting location on my axle I found my way to a grinder and some metal dust.

Posted Image
Posted Image
Posted Image

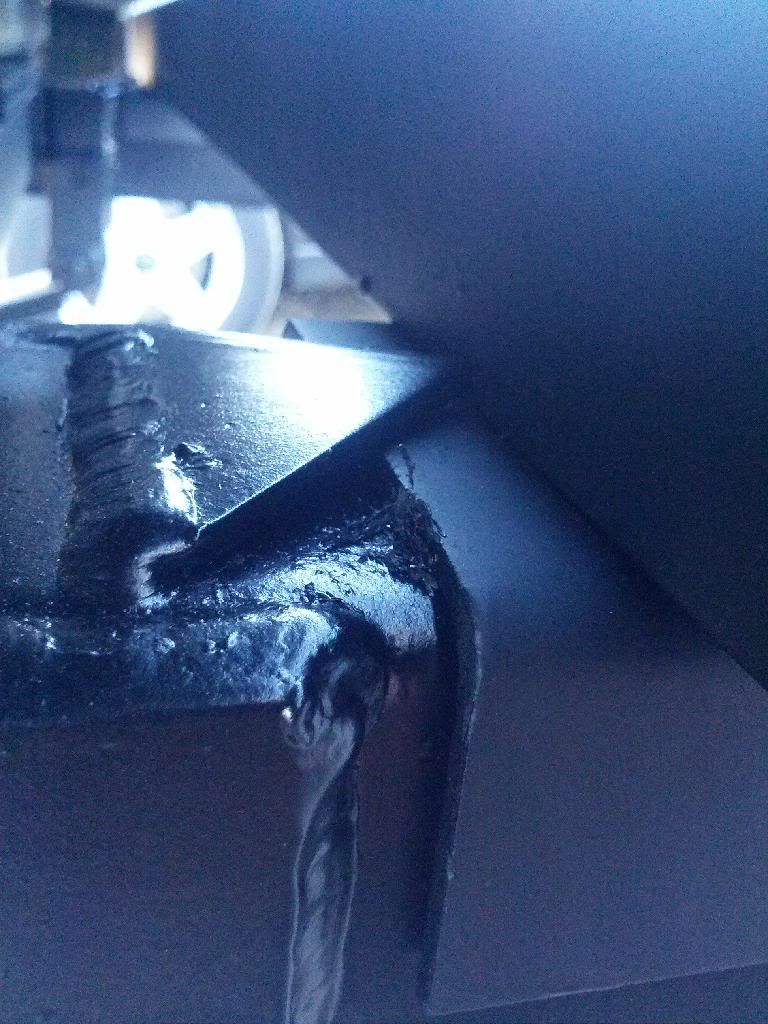

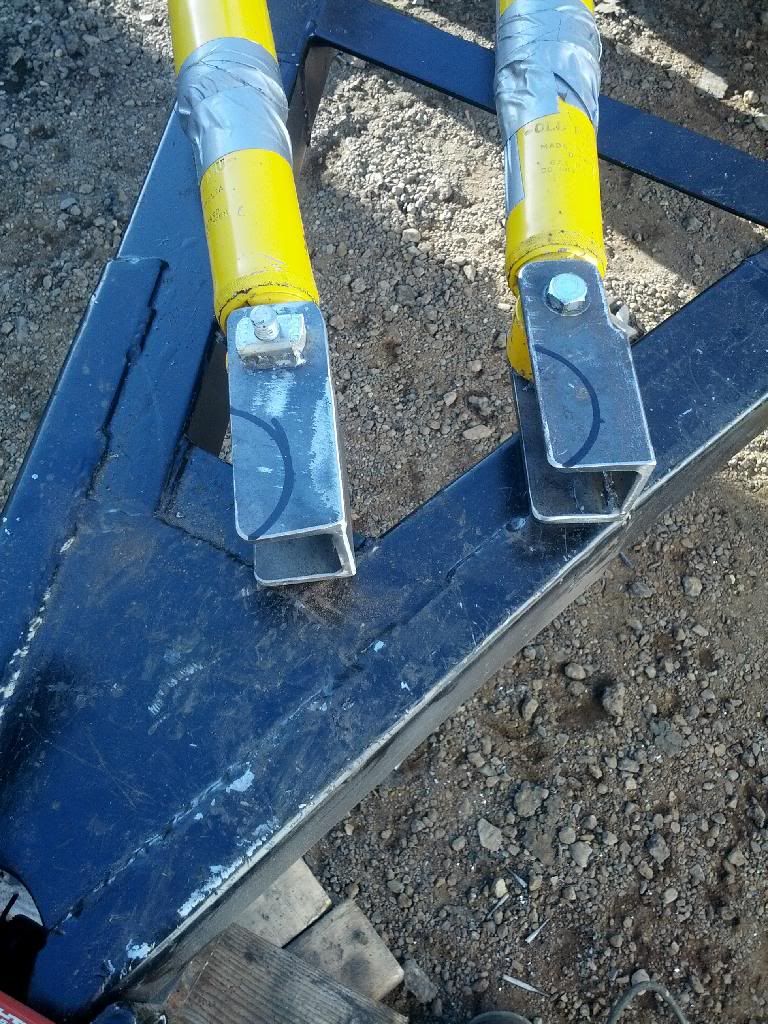

Getting some welds in was next. Finding a mounting location and going to town.

Posted Image
Posted Image
http://i1286.photobu...zpsvcrgdeic.jpg
http://i1286.photobu...zpsxhhwswdm.jpg

#118
Guest_Pedram_*

Guest_Pedram_*
  • Old/deleted account
Next would be the other half and I'll be that much closer to being done.

Posted Image
Posted Image
Posted Image
Posted Image

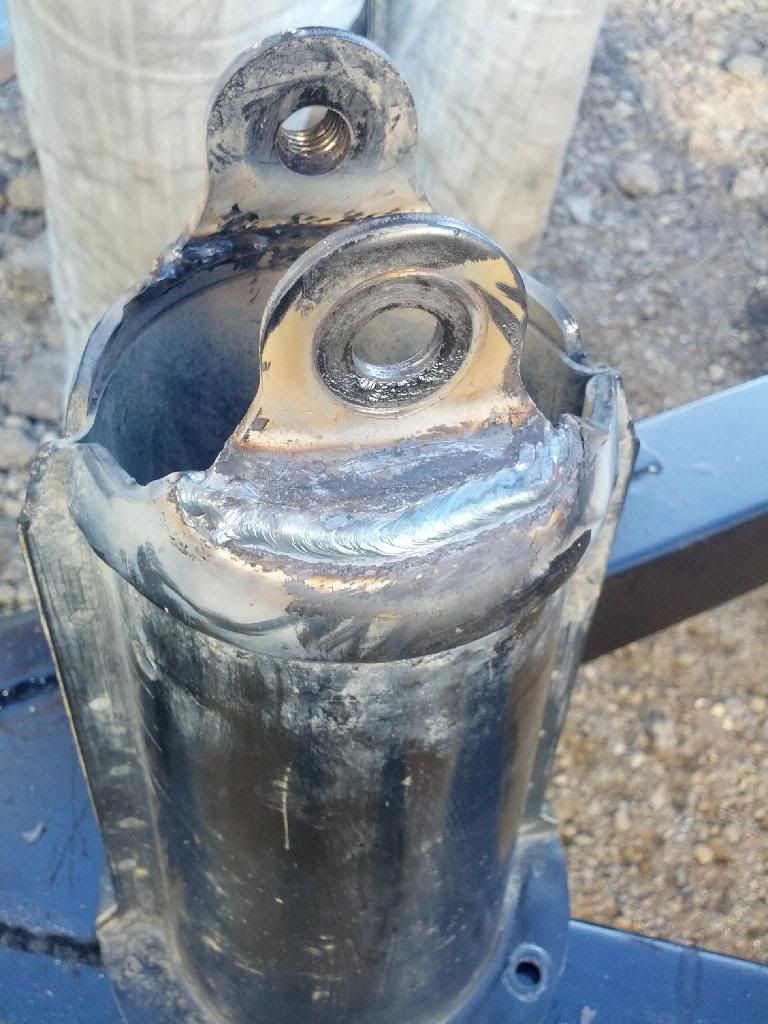

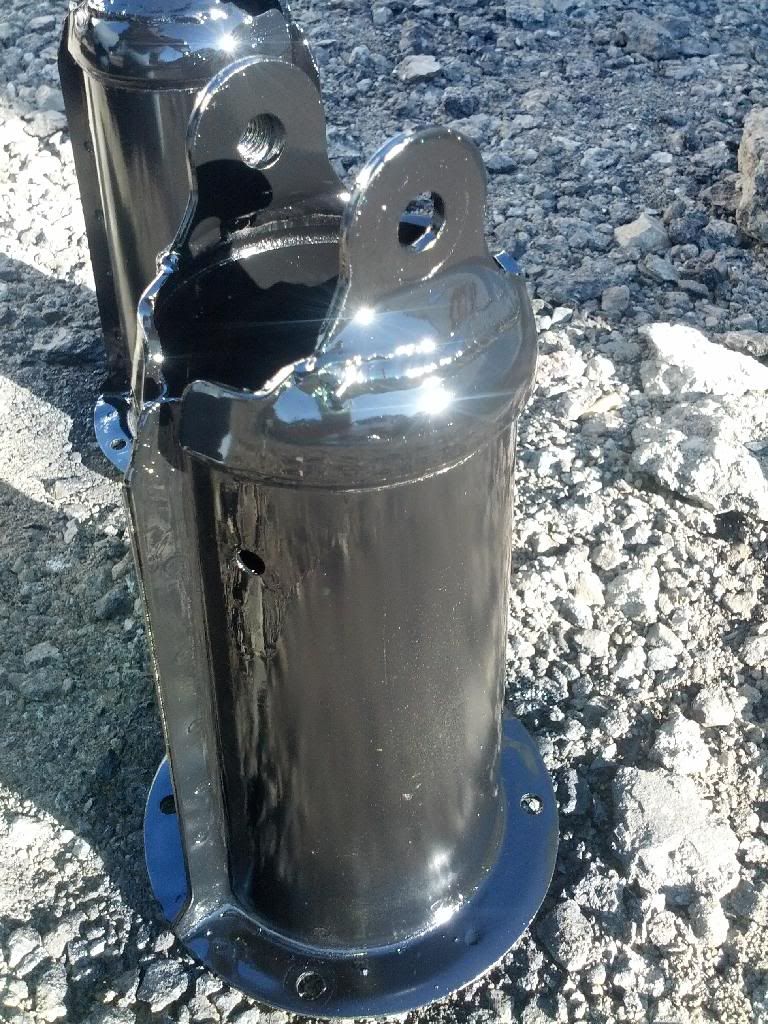

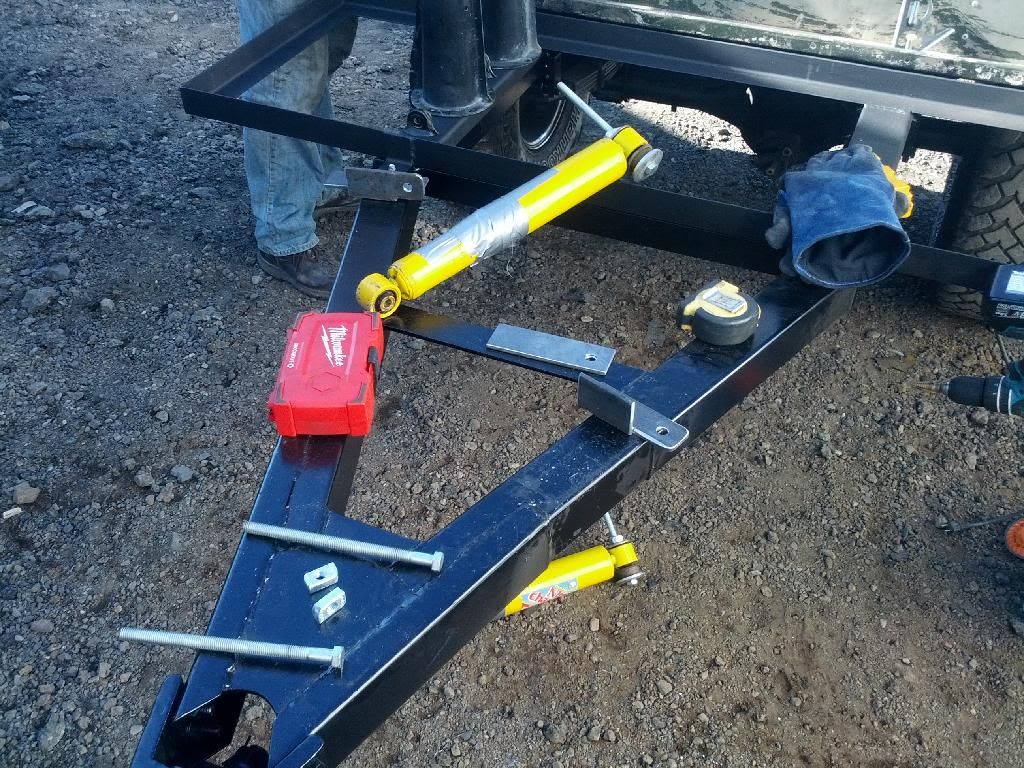

I did take some time to help Brenton do his shock towers since he did come by with them and some fender flares. Now I have some work ahead of me.

Posted Image
Posted Image
Posted Image
Posted Image
Posted Image

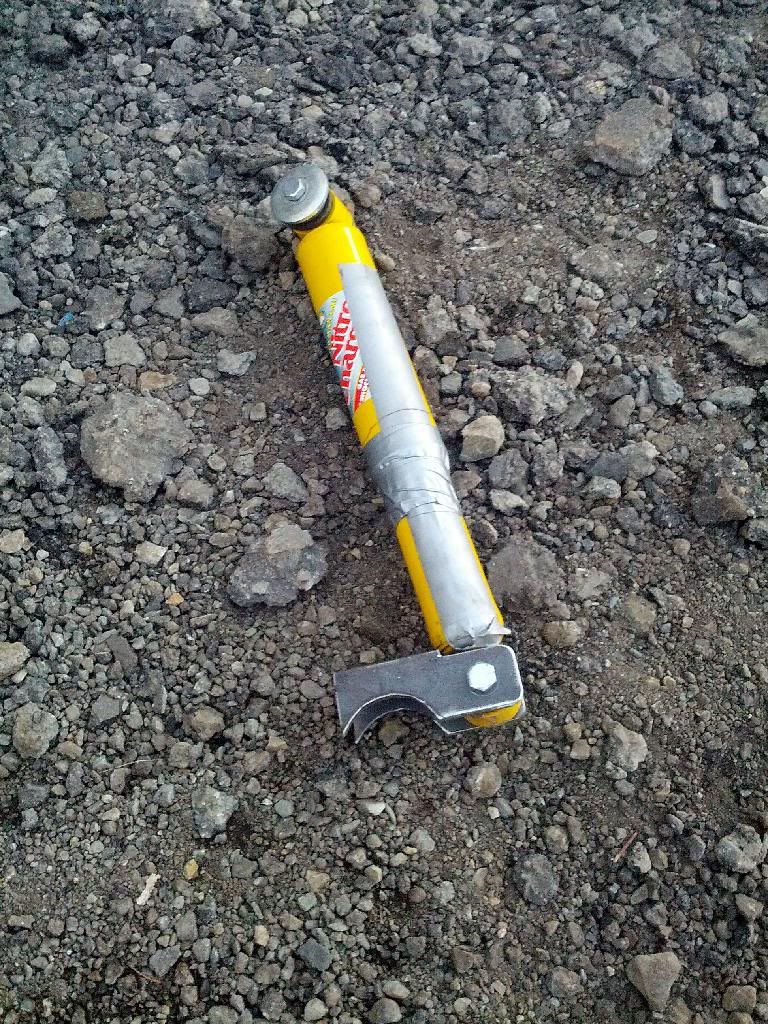

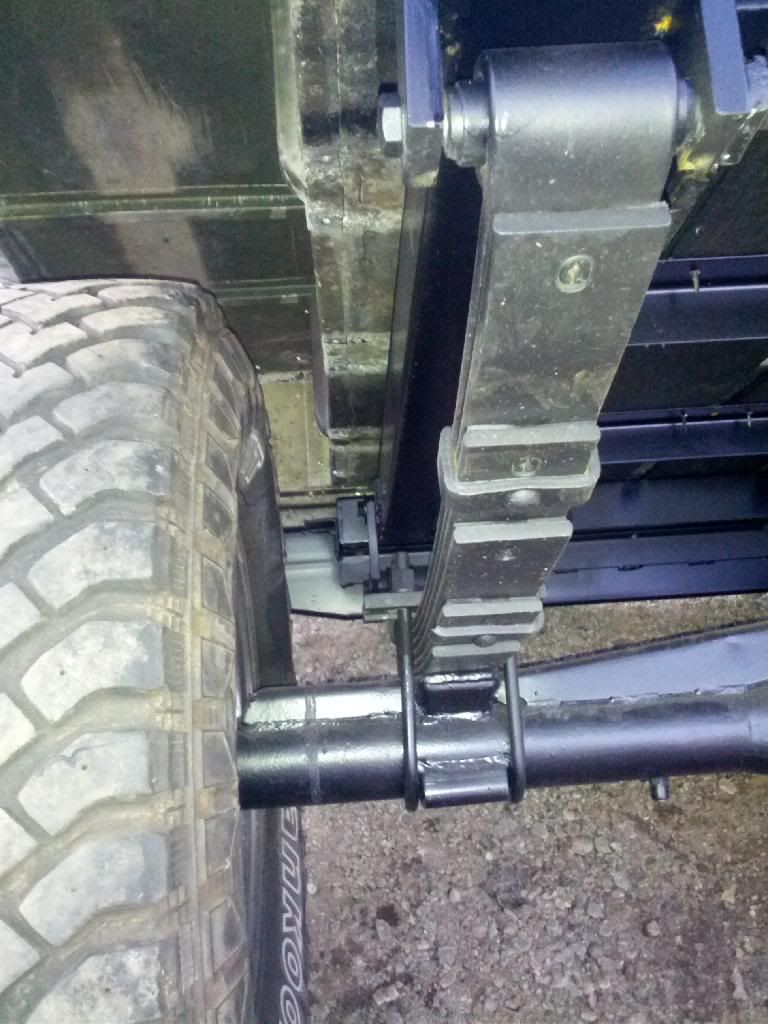

After some Watts linkage and towers I was back to my own and finishing the shocking story for the day.

Posted Image

After it got dark (my favorite time of day) I started the testing and painting.

http://i1286.photobu...zpsvxn8amvc.jpg
http://i1286.photobu...zpsidykhcot.jpg
http://i1286.photobu...zpsrbuh1zbn.jpg
http://i1286.photobu...zpspaelkxmr.jpg

#119
Guest_Pedram_*

Guest_Pedram_*
  • Old/deleted account
Sorry I couldn't leave the shocks yellow. I know they are Old Man Emu yellow but this is my build. Anyway. It has drips and runs but I don't care. I never said I'm a painter.
